Typology
Dimmers for DURASTRIP white, for DURASTRIP CTC, DURASTRIP RGB and RGB+white.
Features
External interface in tempered glass with high touch sensibility, immediate response to touch and control precision.
4 zones can be controlled separately or synchronised.
Can be used with ZKCDMX, ZKCDMX-R, ZKCDMXW.
Conforms with protocol DMX512 (1990).
Dimmer's driver included in the box (220-240Vac / 5Vdc).
Easy installation and intuitive use.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G4h24
Full Guarantee
4 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-11:2002 (+A1:2020)
CEI EN 61547:2010
Logistics data
Barcode single item
8011905839635
Product sheet
Tender text
Extended
Compact

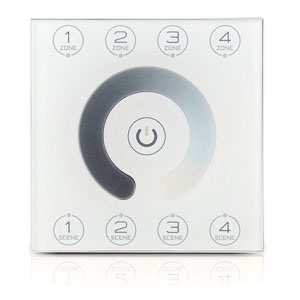

ZKTPC-DIM - Wall DMX DIMMER TOUCH
Typology
Dimmers for DURASTRIP white, for DURASTRIP CTC, DURASTRIP RGB and RGB+white.
Features
External interface in tempered glass with high touch sensibility, immediate response to touch and control precision.
4 zones can be controlled separately or synchronised.
Can be used with ZKCDMX, ZKCDMX-R, ZKCDMXW.
Conforms with protocol DMX512 (1990).
Dimmer's driver included in the box (220-240Vac / 5Vdc).
Easy installation and intuitive use.
Characteristic data
Input: 5 Vdc
Base: Screws
LED Warranty: G4h24
Color: White

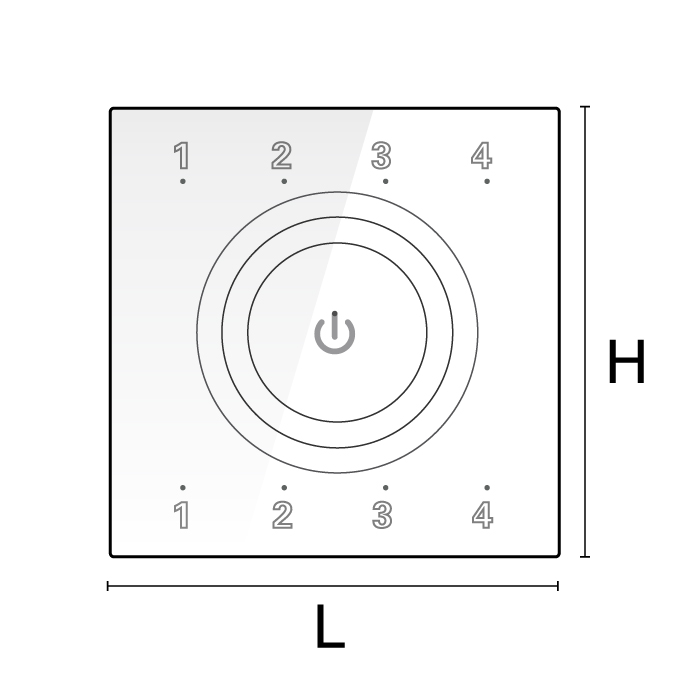

Dimensional characteristics
Dimensiones
L: 86 mm
L1: 86 mm
H: 10 mm
Electrical characteristics
Input voltage: 5 Vdc
Frequency: 50 Hz
Operating temperature: -25°C / +35°C
LED Warranty
G4h24: Full Guarantee
4 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-11:2002 (+A1:2020)
CEI EN 61547:2010
Logistics data
Item net weight: 180 gr
Barcode single item: 8011905839635
Minimum order quantity: 1
Minimum packaging: 1 / 1
ZKTPC-DIM - Wall DMX DIMMER TOUCH
Typology: Dimmers for DURASTRIP white, for DURASTRIP CTC, DURASTRIP RGB and RGB+white. Features: External interface in tempered glass with high touch sensibility, immediate response to touch and control precision. 4 zones can be controlled separately or synchronised. Can be used with ZKCDMX, ZKCDMX-R, ZKCDMXW. Conforms with protocol DMX512 (1990). Dimmer's driver included in the box (220-240Vac / 5Vdc). Easy installation and intuitive use. Characteristic data - Input: 5 Vdc; Base: Screws; LED Warranty: G4h24; Color: White. Dimensional characteristics - Dimensiones; L: 86 mm; L1: 86 mm; H: 10 mm. Electrical characteristics - Input voltage: 5 Vdc; Frequency: 50 Hz; Operating temperature: -25°C / +35°C. LED Warranty - G4h24: Full Guarantee ; 4 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61347-1:2016 (+A1:2021); CEI EN 61347-2-11:2002 (+A1:2020); CEI EN 61547:2010. Logistics data - Item net weight: 180 gr; Barcode single item: 8011905839635; Minimum order quantity: 1; Minimum packaging: 1 / 1.
