Typology
Rectangular recessed fixture for one adjustable GU10 lamp.
Features
Widely used in retail installations, it meets the needs of those who prefer a recessed ceiling luminaire with replaceable lamps.
It offers the advantage of having both multidirectional and adjustable light beams from + 15 ° to -15 ° in the vertical plane.
Houses PAR16 lamps; compatible with all GU10 lamps in the Duralamp catalogue.
Max 15 W.
Installation
Recessed with the special galvanised aluminium springs.
Complete with GU10 lamp holder.
Material
Body in black painted aluminium with silver colour frame.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-25°C / +45°C
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905975845
Number of pieces multiple pack
20
Product sheet
Tender text
Extended
Compact

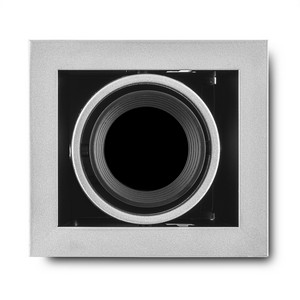

ZKR1-ST - SINGLE-OPTIC RECESSED FIXTURE
Typology
Rectangular recessed fixture for one adjustable GU10 lamp.
Features
Widely used in retail installations, it meets the needs of those who prefer a recessed ceiling luminaire with replaceable lamps.
It offers the advantage of having both multidirectional and adjustable light beams from + 15 ° to -15 ° in the vertical plane.
Houses PAR16 lamps; compatible with all GU10 lamps in the Duralamp catalogue.
Max 15 W.
Installation
Recessed with the special galvanised aluminium springs.
Complete with GU10 lamp holder.
Material
Body in black painted aluminium with silver colour frame.
Characteristic data
Input: 220-240 Vac
Base: GU10
IP: 20
Optical compartment IP: 23
LED Warranty: G5h24
Color: Silver gray

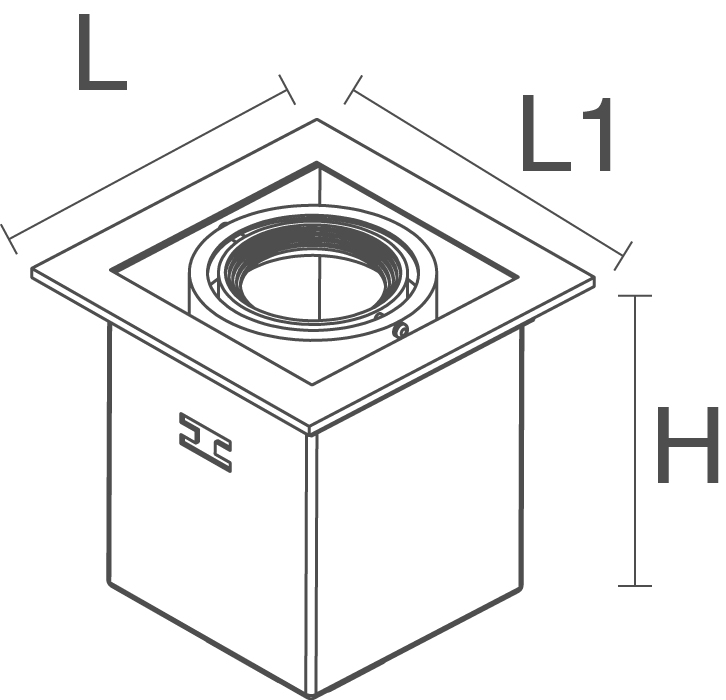

Dimensional characteristics
Dimensiones
L: 110 mm
L1: 110 mm
H: 125 mm
Paso de corte
Cutting hole: 95x95
Electrical characteristics
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Operating temperature: -25°C / +45°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 295 gr
Barcode single item: 8011905975845
Number of pieces multiple pack: 20
Minimum order quantity: 1
Minimum packaging: 1 / 20
ZKR1-ST - SINGLE-OPTIC RECESSED FIXTURE
Typology: Rectangular recessed fixture for one adjustable GU10 lamp. Features: Widely used in retail installations, it meets the needs of those who prefer a recessed ceiling luminaire with replaceable lamps. It offers the advantage of having both multidirectional and adjustable light beams from + 15 ° to -15 ° in the vertical plane. Houses PAR16 lamps; compatible with all GU10 lamps in the Duralamp catalogue. Max 15 W. Installation: Recessed with the special galvanised aluminium springs. Complete with GU10 lamp holder. Material: Body in black painted aluminium with silver colour frame. Characteristic data - Input: 220-240 Vac; Base: GU10; IP: 20; Optical compartment IP: 23; LED Warranty: G5h24; Color: Silver gray. Dimensional characteristics - Dimensiones; L: 110 mm; L1: 110 mm; H: 125 mm; Paso de corte; Cutting hole: 95x95. Electrical characteristics - Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Operating temperature: -25°C / +45°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 295 gr; Barcode single item: 8011905975845; Number of pieces multiple pack: 20; Minimum order quantity: 1; Minimum packaging: 1 / 20.

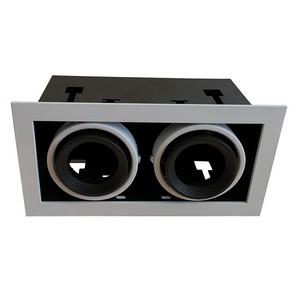

Picture 2
