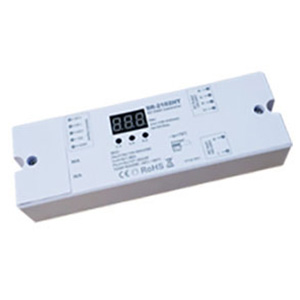

ZKCDMX-HV
Dimmer DMX for DURASTRIP HiVolt
Dimmer DMX for DURASTRIP HiVolt
Can be used with ZKTPC; 300 W/CH, 3 CH.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-11:2002 (+A1:2020)
CEI EN 61547:2010
Logistics data
Barcode single item
8011905862473
Product sheet
Tender text
Extended
Compact
ZKCDMX-HV - Dimmer DMX for DURASTRIP HiVolt
Dimmer DMX for DURASTRIP HiVolt
Can be used with ZKTPC; 300 W/CH, 3 CH.
Characteristic data
Input: 220-240 Vac
Base: Screws
IP: 20
LED Warranty: G3
Dimensional characteristics
Dimensiones
L: 170 mm
L1: 59 mm
H: 29 mm
Electrical characteristics
Input voltage: 220-240 Vac
Frequency: 50 Hz
Output voltage: 220-240
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-11:2002 (+A1:2020)
CEI EN 61547:2010
Logistics data
Item net weight: 160 gr
Barcode single item: 8011905862473
Minimum order quantity: 1
Minimum packaging: 1 / 1
ZKCDMX-HV - Dimmer DMX for DURASTRIP HiVolt
Dimmer DMX for DURASTRIP HiVolt Can be used with ZKTPC; 300 W/CH, 3 CH. Characteristic data - Input: 220-240 Vac; Base: Screws; IP: 20; LED Warranty: G3. Dimensional characteristics - Dimensiones; L: 170 mm; L1: 59 mm; H: 29 mm. Electrical characteristics - Input voltage: 220-240 Vac; Frequency: 50 Hz; Output voltage: 220-240; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61347-1:2016 (+A1:2021); CEI EN 61347-2-11:2002 (+A1:2020); CEI EN 61547:2010. Logistics data - Item net weight: 160 gr; Barcode single item: 8011905862473; Minimum order quantity: 1; Minimum packaging: 1 / 1.
