Typology
High efficiency SMD LED sources integrated into the body of the light fixture available in 3 different versions: recessed, ceiling for surface installation and with a track attachment.
Features
The possibility to use the same fixture with different installation types makes it possible to maintain a uniform aesthetic in different areas of the same space.
Installation
Recessed: with a rapid fixing system to attach to the plasterboard ceiling using springs, electrical connection and free wires.
Surface-mounted: with the frame code PLAFOW1SQ-W, free terminals electrical connection.
Track version: code W1SQT30-W complete with eurostandard compatible adapter.
Material
High dissipation die-cast aluminum body with antiyellowing PC screen: white painted aluminum frame.
Notes
Luminaire is Non-Dimming.
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Colour rendering index
>85
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics

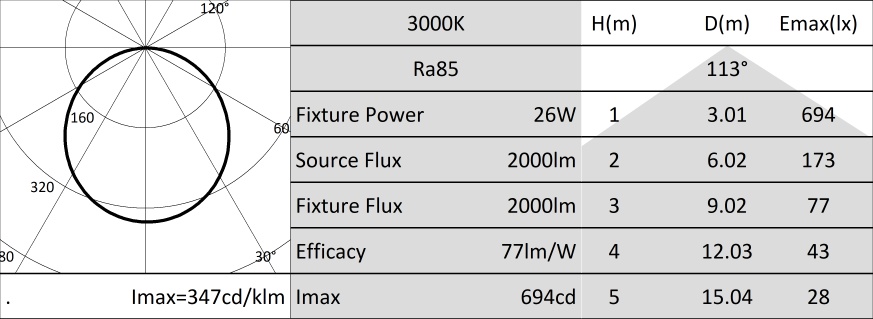

Photometry
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905955601
Product sheet
Tender text
Extended
Compact

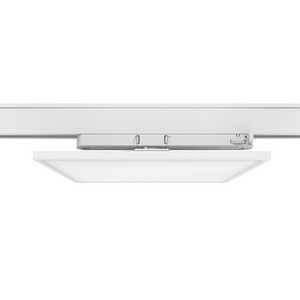

W1SQT30-W - LESELI-Q PRO TRACK
Typology
High efficiency SMD LED sources integrated into the body of the light fixture available in 3 different versions: recessed, ceiling for surface installation and with a track attachment.
Features
The possibility to use the same fixture with different installation types makes it possible to maintain a uniform aesthetic in different areas of the same space.
Installation
Recessed: with a rapid fixing system to attach to the plasterboard ceiling using springs, electrical connection and free wires.
Surface-mounted: with the frame code PLAFOW1SQ-W, free terminals electrical connection.
Track version: code W1SQT30-W complete with eurostandard compatible adapter.
Material
High dissipation die-cast aluminum body with antiyellowing PC screen: white painted aluminum frame.
Notes
Luminaire is Non-Dimming.
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Power: 26 W
Beam: 120°
Dimmable: No
Base: For track
IP: 20
Optical compartment IP: 43
Flux: 2000 lm
PF: 0,9
Tc: 3000 K
Ra: >85
LED Warranty: G5h24
RG: RG0

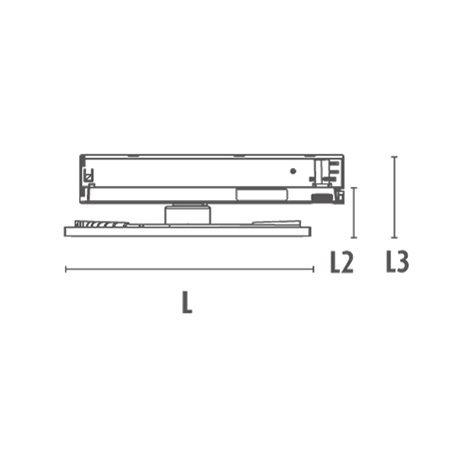

Dimensional characteristics
Dimensiones
L: 223 mm
H: 43 mm
Lighting and photometric features
Beam opening: 120°
Flux: 2000 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: >85
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 26 W
Dimmable: No
Power factor (PF): 0,9
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item: 8011905955601
Minimum order quantity: 1
Other Infotech
Flicker Free: Yes
W1SQT30-W - LESELI-Q PRO TRACK
Typology: High efficiency SMD LED sources integrated into the body of the light fixture available in 3 different versions: recessed, ceiling for surface installation and with a track attachment. Features: The possibility to use the same fixture with different installation types makes it possible to maintain a uniform aesthetic in different areas of the same space. Installation: Recessed: with a rapid fixing system to attach to the plasterboard ceiling using springs, electrical connection and free wires. Surface-mounted: with the frame code PLAFOW1SQ-W, free terminals electrical connection. Track version: code W1SQT30-W complete with eurostandard compatible adapter. Material: High dissipation die-cast aluminum body with antiyellowing PC screen: white painted aluminum frame. Notes: Luminaire is Non-Dimming. Providing greater visual comfort, improved definition of detail and reduction of stress. Characteristic data - Power: 26 W; Beam: 120°; Dimmable: No; Base: For track; IP: 20; Optical compartment IP: 43; Flux: 2000 lm; PF: 0,9; Tc: 3000 K; Ra: >85; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 223 mm; H: 43 mm. Lighting and photometric features - Beam opening: 120°; Flux: 2000 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: >85; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 26 W; Dimmable: No; Power factor (PF): 0,9. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Barcode single item: 8011905955601; Minimum order quantity: 1. Other Infotech - Flicker Free: Yes.
