Typology

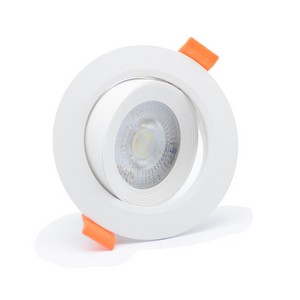

Compact adjustable LED downlight with integrated driver.
Features
Classic spot with 75 mm cut-out and 40° aperture.
Available in warm and natural light versions.
Compact and easy to install.
Tilt Adjustability 30°.
Non removable built-in power supply.
Installation
Complete with springs for easy fastening into false ceilings.
Material
Heat resistant, anti-yellowing plastic body.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905987718
Number of pieces multiple pack
40
Barcode multiple pack
8011905990169
Product sheet
Tender text
Extended
Compact
VA03L140T - VALO MINI
Typology
Compact adjustable LED downlight with integrated driver.
Features
Classic spot with 75 mm cut-out and 40° aperture.
Available in warm and natural light versions.
Compact and easy to install.
Tilt Adjustability 30°.
Non removable built-in power supply.
Installation
Complete with springs for easy fastening into false ceilings.
Material
Heat resistant, anti-yellowing plastic body.
Characteristic data
Power: 7 W
Beam: 40°
Dimmable: No
Input: 220-240 Vac
Base: Wire
IP: 20
Optical compartment IP: 43
Flux: 650 lm
PF: 0.5
Tc: 4000 K
Ra: 80
LED Warranty: G2
Axis: 735 cd
RG: RG0
Dimensional characteristics
Dimensiones
ø: 90 mm
H: 40 mm
Paso de corte
Cutting hole: 72
Lighting and photometric features
Beam opening: 40°
Flux: 650 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: 80
Lifespan: 15000 h
LED lifespan: L70B30
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 7 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0.5
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 52 gr
Barcode single item: 8011905987718
Number of pieces multiple pack: 40
Barcode multiple pack: 8011905990169
Minimum order quantity: 10
Minimum packaging: 10 / 40
VA03L140T - VALO MINI
Typology: Compact adjustable LED downlight with integrated driver. Features: Classic spot with 75 mm cut-out and 40° aperture. Available in warm and natural light versions. Compact and easy to install. Tilt Adjustability 30°. Non removable built-in power supply. Installation: Complete with springs for easy fastening into false ceilings. Material: Heat resistant, anti-yellowing plastic body. Characteristic data - Power: 7 W; Beam: 40°; Dimmable: No; Input: 220-240 Vac; Base: Wire; IP: 20; Optical compartment IP: 43; Flux: 650 lm; PF: 0.5; Tc: 4000 K; Ra: 80; LED Warranty: G2; Axis: 735 cd; RG: RG0. Dimensional characteristics - Dimensiones; ø: 90 mm; H: 40 mm; Paso de corte; Cutting hole: 72. Lighting and photometric features - Beam opening: 40°; Flux: 650 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: 80; Lifespan: 15000 h; LED lifespan: L70B30; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 7 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0.5; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 52 gr; Barcode single item: 8011905987718; Number of pieces multiple pack: 40; Barcode multiple pack: 8011905990169; Minimum order quantity: 10; Minimum packaging: 10 / 40.
