Typology
Immediate retro-fit of incandescent lamps up to 60W, perfect replacement of opal incandescent lamps, no more available on the European market.
Features
Uniformly diffused lighting on the axes.
Material
The body of the lamp is in termoconductive material to optimise heat dissipation; ultralight cover.
Beam
240° - Antiglare opal finish of the lamp cover.
Notes
Disponibili su richiesta in version 110-132V AVAILABLE UPON REQUEST.
Characteristic data
Dimensional characteristics
ø
45 mm
H
79 mm
H Tolerance
± 3 mm
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
5 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
41
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905853839
Number of pieces multiple pack
10
Barcode multiple pack
8011905853846
Product sheet
Tender text
Extended
Compact

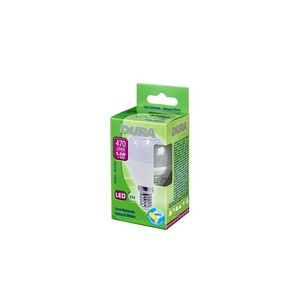

S40NB - E14 ROUND LED
Typology
Immediate retro-fit of incandescent lamps up to 60W, perfect replacement of opal incandescent lamps, no more available on the European market.
Features
Uniformly diffused lighting on the axes.
Material
The body of the lamp is in termoconductive material to optimise heat dissipation; ultralight cover.
Beam
240° - Antiglare opal finish of the lamp cover.
Notes
Disponibili su richiesta in version 110-132V AVAILABLE UPON REQUEST.
Characteristic data
Power: 5.5 W
Beam: 240°
Dimmable: No
Input: 220-240 Vac
Base: E14
IP: 20
Flux: 470 lm
PF: 0,5
Tc: 4000 K
Ra: >80
LED Warranty: G2
Dimensional characteristics
Dimensiones
ø: 45 mm
H: 79 mm
H Tolerance: ± 3 mm
Lighting and photometric features
Beam opening: 240°
Flux: 470 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 15000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 5.5 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,5
Input current: 0.046 A
Weighted energy consumption: 5 kWh/1000h
Energy efficiency class: F
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 41
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 23 gr
Barcode single item: 8011905853839
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905853846
Minimum order quantity: 10
Minimum packaging: 10 / 10
S40NB - E14 ROUND LED
Typology: Immediate retro-fit of incandescent lamps up to 60W, perfect replacement of opal incandescent lamps, no more available on the European market. Features: Uniformly diffused lighting on the axes. Material: The body of the lamp is in termoconductive material to optimise heat dissipation; ultralight cover. Beam: 240° - Antiglare opal finish of the lamp cover. Notes: Disponibili su richiesta in version 110-132V AVAILABLE UPON REQUEST. Characteristic data - Power: 5.5 W; Beam: 240°; Dimmable: No; Input: 220-240 Vac; Base: E14; IP: 20; Flux: 470 lm; PF: 0,5; Tc: 4000 K; Ra: >80; LED Warranty: G2. Dimensional characteristics - Dimensiones; ø: 45 mm; H: 79 mm; H Tolerance: ± 3 mm. Lighting and photometric features - Beam opening: 240°; Flux: 470 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 15000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 5.5 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,5; Input current: 0.046 A; Weighted energy consumption: 5 kWh/1000h; Energy efficiency class: F; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 41. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 23 gr; Barcode single item: 8011905853839; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905853846; Minimum order quantity: 10; Minimum packaging: 10 / 10.
