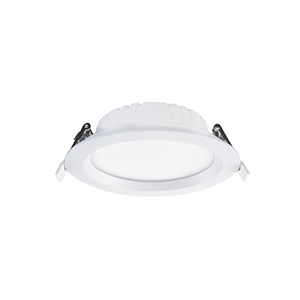

Typology
High-efficiency SMD LED sources integrated in an IP65 recessed luminaire, Ra>90, 50000 hours, with selectable light colour.
The lumen and power data indicated refers to the 4000K colour temperature.
Features
Family declined in 3 powers and sizes.
Dip-switch for colour temperature selection located on the luminaire body.
Soft satin effect polycarbonate anti-glare diffuser.
Flicker Free.
Installation
Complete with springs for easy fastening into false ceilings.
Material
Die-cast aluminium body.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000-4000-6000 K
Electrical characteristics
Weighted energy consumption
14 kWh/1000h
Energy efficiency class
This product contains a light source of energy efficiency class "D"
Operating temperature
-25°C / +35°C
Photometry
Other Infotech
Light source replaceability
Replaceable (LED only) light source by a professional.
Control gear replaceability
Replaceable control gear by a professional.
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905017774
Number of pieces multiple pack
40
Product sheet
Tender text
Extended
Compact
RTF04L2EXCCT - RTF CCT IP65
Typology
High-efficiency SMD LED sources integrated in an IP65 recessed luminaire, Ra>90, 50000 hours, with selectable light colour.
The lumen and power data indicated refers to the 4000K colour temperature.
Features
Family declined in 3 powers and sizes.
Dip-switch for colour temperature selection located on the luminaire body.
Soft satin effect polycarbonate anti-glare diffuser.
Flicker Free.
Installation
Complete with springs for easy fastening into false ceilings.
Material
Die-cast aluminium body.
Characteristic data
Power: 14 W
Beam: 100°
Dimmable: No
Input: 220-240 Vac
Base: Free terminals
IP: 65
Flux: 1400 lm
PF: 0.5
Tc: 3000-4000-6000 K
Ra: 90
LED Warranty: G3
Axis: 540 cd
RG: RG1
Dimensional characteristics
Dimensiones
ø: 140 mm
H: 38 mm
Paso de corte
Cutting hole: 120
Lighting and photometric features
Beam opening: 100°
Flux: 1400 lm
CCT nominal colour temperature: 3000-4000-6000 K
Colour of the light: CCT
Colour rendering index: 90
Lifespan: 50000 h
LED lifespan: L70B20
Electrical characteristics
Rated power: 14 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0.5
Input current: 0.122 A
Weighted energy consumption: 14 kWh/1000h
Energy efficiency class: This product contains a light source of energy efficiency class "D"
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 300 gr
Barcode single item: 8011905017774
Number of pieces multiple pack: 40
Minimum order quantity: 1
Minimum packaging: 1 / 40
Other Infotech
Flicker Free: Yes
Light source replaceability: Replaceable (LED only) light source by a professional.
Control gear replaceability: Replaceable control gear by a professional.
RTF04L2EXCCT - RTF CCT IP65
Typology: High-efficiency SMD LED sources integrated in an IP65 recessed luminaire, Ra>90, 50000 hours, with selectable light colour. The lumen and power data indicated refers to the 4000K colour temperature. Features: Family declined in 3 powers and sizes. Dip-switch for colour temperature selection located on the luminaire body. Soft satin effect polycarbonate anti-glare diffuser. Flicker Free. Installation: Complete with springs for easy fastening into false ceilings. Material: Die-cast aluminium body. Characteristic data - Power: 14 W; Beam: 100°; Dimmable: No; Input: 220-240 Vac; Base: Free terminals; IP: 65; Flux: 1400 lm; PF: 0.5; Tc: 3000-4000-6000 K; Ra: 90; LED Warranty: G3; Axis: 540 cd; RG: RG1. Dimensional characteristics - Dimensiones; ø: 140 mm; H: 38 mm; Paso de corte; Cutting hole: 120. Lighting and photometric features - Beam opening: 100°; Flux: 1400 lm; CCT nominal colour temperature: 3000-4000-6000 K; Colour of the light: CCT; Colour rendering index: 90; Lifespan: 50000 h; LED lifespan: L70B20. Electrical characteristics - Rated power: 14 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0.5; Input current: 0.122 A; Weighted energy consumption: 14 kWh/1000h; Energy efficiency class: This product contains a light source of energy efficiency class "D"; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 300 gr; Barcode single item: 8011905017774; Number of pieces multiple pack: 40; Minimum order quantity: 1; Minimum packaging: 1 / 40. Other Infotech - Flicker Free: Yes; Light source replaceability: Replaceable (LED only) light source by a professional; Control gear replaceability: Replaceable control gear by a professional.

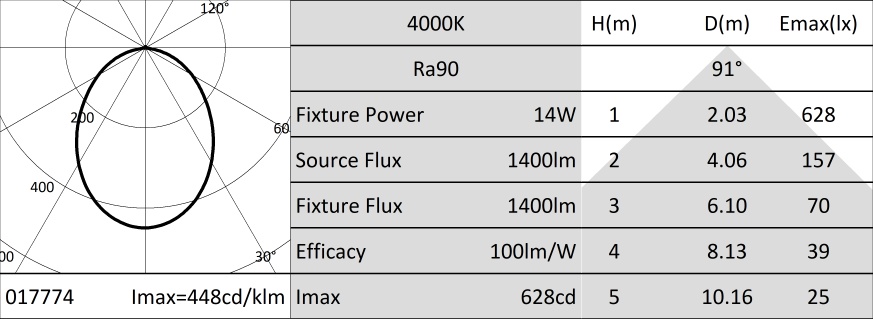

Picture 2
