SLIMFLUX BL IP65 - PRO
Share
Ask info
Models
Accessories
Typology

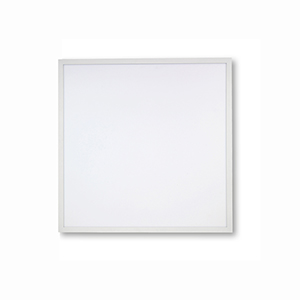

LED panel with IP65 protection degree.
Direct lighting panel with rear dissipation shell.
Features
Panel equipped with a resin coated power supply providing an IP65 connection to both the panel and exposed wiring: may be used in installations that are exposed to particularly difficult environmental conditions without the need for precautions to protect the driver.
Equipped with a GORE-TEX® valve to compensate for pressure variations due to thermal changes and to prevent the formation of condensation in the fixture.
Installation
Consider more depth for recessed installations.
Surface mounting: select the recommended frame from the accessories table.
Material
Painted white aluminium body; PMMA screen.
Applications
Panel suitable for outdoor installations and in places such as bathrooms, kitchens, plant areas etc.
Packaging
6 pieces pack with single items' box.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
220-240 Vac
Ra >80
50000 h
L70B20
IP65
Free Wire
-25°C
+40°C
Risk
Group 0
120°
G5
h24
* Minimum order quantity
PLUS frames for mounting LED panels on ceilings
Frames for mounting LED panels on ceilings.
Screwless one piece painted metal.
Surface mounting installation with bracket.
Screws and plugs supplied.
* Minimum order quantity
Frames for mounting LED panels on ceilings - h80
Basic model in kit form to be assembled - h 80.
Epoxy painted extruded aluminium separated into 4 bars to be assemble while mounting. Easy and fast mounting directly on the surface.
White color.
* Minimum order quantity
New item
Frame with springs for recessed installation of LED panels
Frame with springs for recessed installation of LED panels in non-modular ceilings.
Set of 4 extruded aluminium profiles to be easily assembled with corner spring-brackets.
White color.
* Minimum order quantity
Screws
-25°C
+35°C
Standby emergency kit
Emergency electronic unit for standby lighting (as indicated by the UNI EN 1838) suitable for current controlled power LED.
Can be used for maintained or emergency operation.
Can be used with max 2A - 90V.
Battery life: 3 hours (battery pack dimensions: 135 x 45 x 23 mm).
Battery inserted in a protective case in accordance with regulations.
Residual flux in emergency 7%.

Reserve lighting means lighting that allows you to continue normal activity without substantial change.
Fixtures indicated as compatible with the kit have passed the required tests for the reserve lighting category in compliance with EN 60598-2-22.
W
Total max W
Connection
Max Current (A)
Volt OUT
lm
K
Ra
PF
Diameter
L
L1
H
Packaging


Screws

90






155
51
26
470
1
8011905933012
1
1 / 1

* Minimum order quantity
Junction box for connection
Junction box for connection to the mains, prepared for connection in cascade, equipped with safety suspension kit with steel cable for installations in seismic zones.
* Minimum order quantity
-25°C
+35°C
Junction box for connection
Junction box for connection to the power supply network, prepared for connection in cascade (cable length 27 cm).
* Minimum order quantity
Adjustable suspension cables
* Minimum order quantity
Metal springs kit
Metal springs kit for recessed installation - 4 pieces.
* Minimum order quantity
