DuraNeonFlex VERT

Models

Accessories

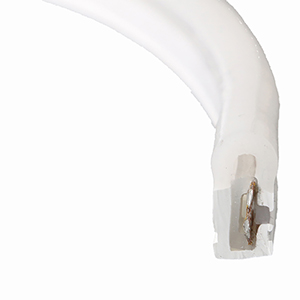

DuraNeonFlex is a flexible extruded silicone profile, complete with 120 LEDs per meter strip.
The narrow pitch of the chips and Ic technology make DNF a perfect light line, homogenous on all its 10 meters of length.

Typology

DuraNeonFlex features a rounded section.
VERT flex Version: vertical emission away from the bottom of the channel.

Features

Flexible light line with continuous lighting: so flexible you can create curves with a minimum diameter of 12 cm for VERT models.
Anti-glare diffuser function.
Maximum length per single power supply: 10 metres.

Installation

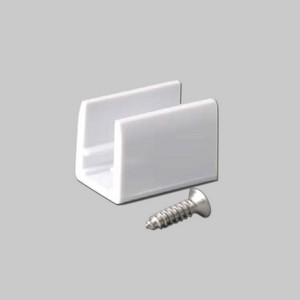

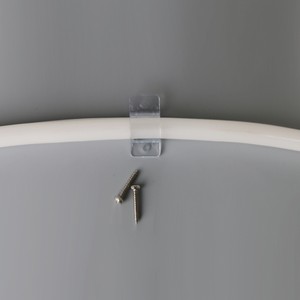

It is attached to the surface with the clips; it can be cut following the cutting marks (5cm).
DNF is equipped with different terminals for power supply: in-line, side and rear connection to the profile to meet any installation requirement.

Material

Extremely flexible, impact resistant and weatherproof extruded silicone.

Usage information

DuraNeonFlex are dimmable like all DURASTRIP.

Packaging

DNF can be supplied at any specific length (max length 10 meters for single power supply, cut every 5 cm) with or without the electrical terminals or in 10 m and 50 m reels without terminals.

DuraNeonFlex VERT White

24 Vdc

Ra >80

36000 h
L70B20

IP65

IK07

Free Wire

-25°C
+35°C

Risk
Group 0

150°

G4
h24

Standard:
The codes in the first column have a standard size of 10 meters each reel and NO connectors attacched.
Professional 50 metres reels can be made to order by adding 5000 at the end of each code.

Custom cut WITHOUT connector:
If the required length is different from 10 meters, then add 4 digits at the end of the code: cut every 5 cm, max 10 meters.

Custom cut WITH connector:
Items with connector should add to the chosen code the termination "EX" and the letter of the selected connector: A - B/D - C, (see examples herebelow), then add the connector price to the price per meter and the single piece processing cost.

DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
Maximum bending radius for articles 09UV: 120 mm.

* Minimum order quantity

DuraNeonFlex VERT Color

24 Vdc

36000 h
L70B20

IP65

IK07

Free Wire

-25°C
+35°C

Risk
Group 0

150°

G4
h24

* Minimum order quantity

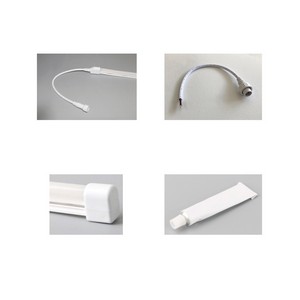

DNF VERT wiring kit

DNF VERT wiring kit including output line/straight exit wire + end cap + 30 cm long power cord for driver connection.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix A in the codes of finished end prepared product.

Packaging

Article

DNF VERT RGB wiring kit

* Minimum order quantity

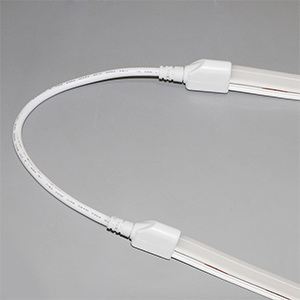

DNF VERT linear wiring

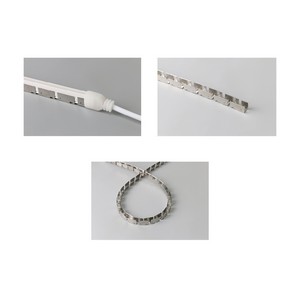

DNF VERT linear wiring jumper 30 cm (3 pieces).

Packaging

Article

DNF VERT linear wiring

KT09UVRGBJM1

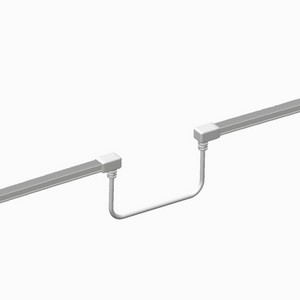

DNF VERT RGB linear wiring

* Minimum order quantity

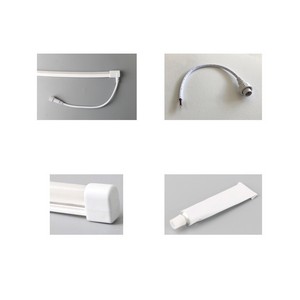

DNF VERT wiring kit

DNF VERT wiring kit including output side/lateral exit wire + end cap.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix B in the codes of finished end prepared product.

Packaging

Article

DNF VERT RGB wiring kit

* Minimum order quantity

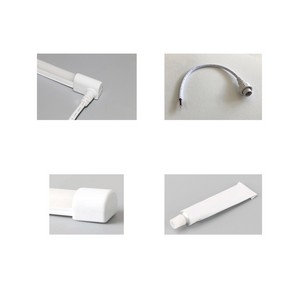

DNF VERT wiring kit

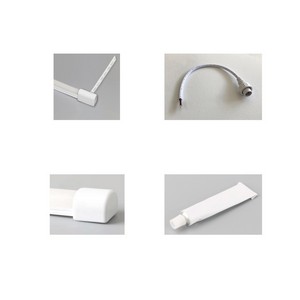

DNF VERT wiring kit including output side/lateral exit wire (opposite direction with L2B), free wires + silicon end cap.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix D in the codes of finished end prepared product.

Packaging

Article

* Minimum order quantity

DNF VERT Flex wiring kit

DNF VERT Flex wiring kit including rear/bottom exit wire + end cap + 30 cm long power cord for driver connection.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix C in the codes of finished end prepared product.

Packaging

Article

DNF VERT RGB wiring kit
