DuraNeonFlex TWIST

Models

Accessories

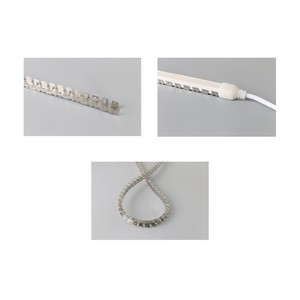

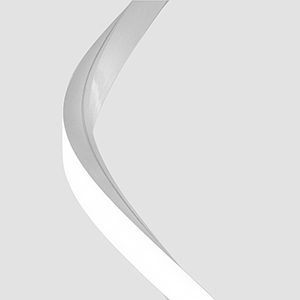

DuraNeonFlex Twist is the ideal tool to follow the fluid form of contemporary architecture and is able to follow curved paths that change direction in unexpected and surprising ways, DNF Twist can be twisted both vertically and horizontally and may be cut to size at any point making it possible to obtain the exact lengths necessary for any project.

Features

Flexible light line with continuous lighting: so flexible you can create curves with a minimum diameter of 6 cm and allows twisting of 360° in one meter!
Lifetime: internal use >50,000h; external use>35,000h
Warranty: 3 years
IP65 with free wires

Installation

DNF is equipped with different terminals for power supply: in-line, side and rear connection to the profile to meet any installation requirement.

Material

Extremely flexible, impact resistant and weatherproof extruded silicone.

Usage information

Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible

Packaging

Packaged in 5 meters reels.
DuraNeonFlex Twist can be ordered in custom lengths, with a max of 5 meters per electrical connection - with no minimum cut size - without or without the terminals needed for the project (in-line, side, or rear connection).

New item

24 Vdc

Ra >80

IP65

IK07

-25°C
+35°C

120°

Standard:
The codes in the table below have a standard size of 5 meters each reel and NO connectors attached.
Professional reels with 10 or 50 meters DNF can be ordered upon project by adding "1000" or "5000" at the end of each code.

Without connectors:
If the required length is different from 5 meters, then add 4 digits at the end of the code but consider there is no cut minimum on this item but there is a maximum of 5 meters.

Ready to use with connector:
Items with connector should add to the chosen code the termination "EX" and the letter of the selected connector: A - B - C, then add the connector price to the price per meter and the single piece processing cost.

W/m

lm/m

Packaging

Article

* Minimum order quantity

New

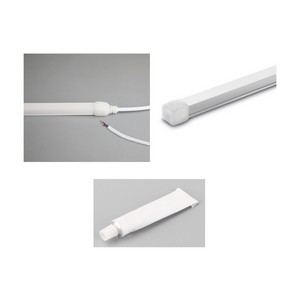

DNF TOP TWIST wiring kit

DNF TOP TWIST wiring kit including output line/straight exit wire, free wires + end cap.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix A in the codes of finished end prepared product.

Packaging

Article

DNF TOP TWIST wiring kit

* Minimum order quantity

New

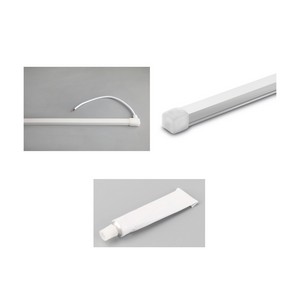

DNF TOP TWIST wiring kit

DNF TOP TWIST wiring kitincludes output side/lateral exit wire, free wires + end cap.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix B in the codes of finished end prepared product.

Packaging

Article

DNF TOP TWIST wiring kit

* Minimum order quantity

New

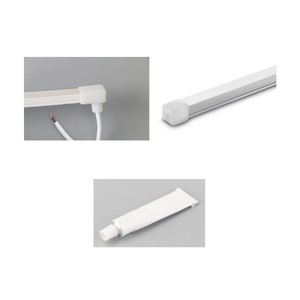

DNF TOP TWIST wiring kit

DNF TOP TWIST wiring kit includes rear/bottom exit wire, free wires + end cap.
DNF Strips with end cap are IP40; if properly sealed with glue they provide IP65.
This wiring kit corresponds to the suffix C in the codes of finished end prepared product.

Packaging

Article

DNF TOP TWIST wiring kit
