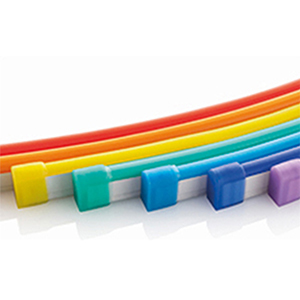

A very slim line of light (8 mm) with no LED dotting, without cut limitations, flexible enough to be able to create 60 mm curves and available in 8 colours besides white light: DNF MINI is a small part of an amazing family!
Entirely extruded in high transmittance silicone, weather proof and impact resistant, it is suitable for creating particularly detailed and attractive light patterns, even in a single connection of 10 meters.

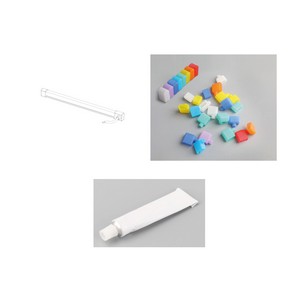

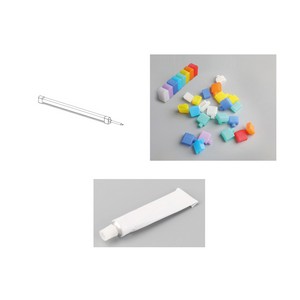

The closing terminals are in a translucent silicone allowing the light to pass through to be the same colour as the strip.
Typology
Flexible light lines in extruded silicone, 8 mm thick with uniform and balanced VERT light emission and no LED dotting.
Features
Flexible light line with a continuous lighting effect: so flexible you can create curves with a minimum diameter of 3 cm and allows twisting of 360° in 30 cm!
24VDC
Ra>80
Lifetime: internal use >50,000h; external use>35,000h
Warranty: 3 years
Installation

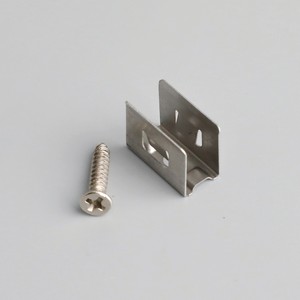

Surface mounted with clips; can be cut at any point (free cut).
Fitted with different outputs for power supply.
Material
Extremely flexible, impact resistant and weatherproof extruded silicone.
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 10 meters reels.
DNF MINI can be ordered in custom lengths, with a max of 5 meters per electrical connection - with no minimum cut size - without or without the terminals needed for the project (in-line, side, or rear connection).
