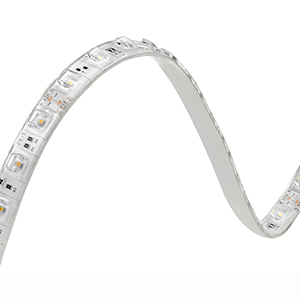

A minimal and unobtrusive light element providing a wall wash effect.
By utilising an asymmetric reflector, the light is directed across the vertical surface, the efficiency of the LED's power is maximised to provide a uniformed wash effect of light.
The product is sealed to guarantee a high degree of Ingress Protection (IP67).
Installation

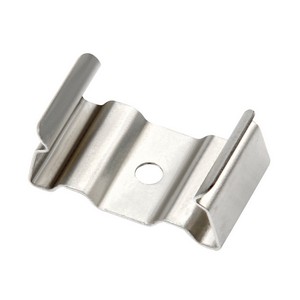

Installation requires metal clips, see separate accessories code.
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
LED
LED 3030
30 LED/m
Ra>90
Lifetime: >30,000h
Warranty: 3 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step.
Connections
IP67: complete with a 15 cm long M/F cable on 2 sides.
Maximum connection length 5 m. Max 4A.
Strips can be cut to size by following the cutting indications printed on the strips.

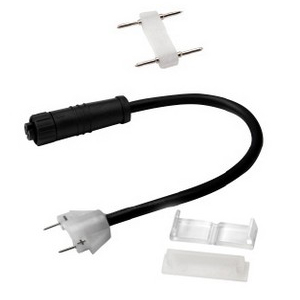

2 PIN connectors included in kit code KT07UXOL allow strips to be linked up to a maximum run of 5 meters.
