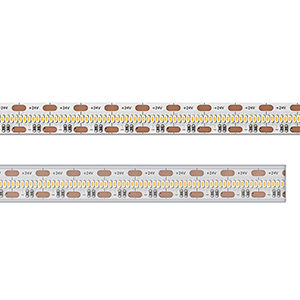

DURASTRIP ULTRA HD700 IP20
700 very small LEDs per meter mounted with a centre distance of only 1.4 mm create a highly effective continuous line of light.
The cut every 10 mm allows unprecedented installation flexibility.
It can be used with wood panelling, cove lighting, etc. Always use with an aluminium profile to allow heat dissipation and with low thickness profiles as the pitch of the LEDs cancels any pointed effect.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Always use with aluminium profiles for heat dissipation.Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
LED
LED 2110
700 LED/m
Ra>90
Lifetime: >50,000h
Warranty: 5 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
Terminals with free wires.
Maximum connection length 5 m.
Strips can be cut to size by following the cutting indications printed on the strips.
