DURASTRIP PRO60 RGB IP65

Models

Accessories

DURASTRIP PRO60 RGB were designed to satisfy the range of use that requires an excellent product as well as cost optimization.
The PRO60 RGB range has a substate that is optimised for power management in relation to flow and useful life.
Excellent light emission and colour control over time.

Installation

Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.

Usage information

Dimmable 0-100% Flicker Free
DMX with ZKCDMXWFF, ZKCDMX-RFF controller
Analogue and digital domotic control systems
CASAMBI compatible

Packaging

Packaged in 5 meters reels.

LED

LED 5050
60 LED/m
R=615-625nm; G=520-530nm; B=465-475nm;
Lifetime: >50,000h
Warranty: 5 years

Colour of the light

RGB

Connections

Complete with a 15 cm long IP65/68 M/F cable on 2 sides.
Maximum connection length 5 m. Max 4A.
For longer connections, connect in series or parallel, see diagram.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.

New

24 Vdc

Ra >80

50000 h
L70B20

IP65

Connector

-25°C
+35°C

Risk
Group 0

120°

G5
h24

W/m

Connection

N° Led/m

Packaging

Article

* Minimum order quantity

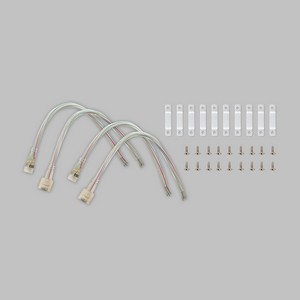

Kit for RGB strip

This kit includes 4 terminal blocks with 15 cm wire, 10 pcs end caps, 10 pcs silicone fixing bridges with screws.

Packaging

Article

Cut and mount kit for strip IP68 and IP65 - RGB

* Minimum order quantity

IP67

Free Wire

-25°C
+35°C

G5
h24

DURASTRIP DRIVERS IP67

Connection

Volt OUT

Packaging

Article

IP67 DURASTRIP driver

ZK73200

IP67 DURASTRIP driver

ZK73600T

IP67 DURASTRIP driver

* Minimum order quantity

5 Vdc

Screws

-25°C
+35°C

G4
h24

DMX WALL TOUCH DIMMER FOR WHITE LIGHT DURASTRIP

Each channel can have 256 levels of light variation and 4 favourite scenes can be saved.
"Memory" function: the last colour temperature chosen is recalled when the light is switched back on again; 3 scenes can be saved.

Connection

Color

No. of DMX channels

Area number

No. of scenes

Packaging

Article

Wall DMX DIMMER TOUCH

* Minimum order quantity

12-24 Vdc

IP20

Screws

-25°C
+35°C

G5
h24

DMX CONTROLLER 3 CHANNELS

It can be used with all DURASTRIP RGB, and white.
Version with RJ45 connector that can be used in the traditional way or with the remote control included in the package.
Max current 5A / channel.

Connection

No. of DMX channels

Volt OUT

Packaging

Article

DMX 3 channels controller for RGB

* Minimum order quantity

12-24 Vdc

IP20

Screws

-25°C
+35°C

G5
h24

DMX CONTROLLER 4 CHANNELS

Can be used with DURASTRIP RGB + white (or 4 channels).
Connection diagrams are available at site (in the product datasheet).
Max current 5A / channel.

Connection

No. of DMX channels

Volt OUT

Packaging
