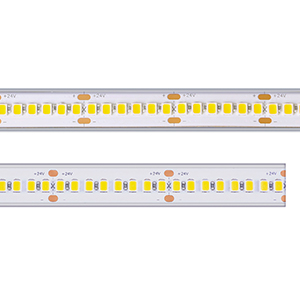

PRO240 is a range of strips with significant power, up to 24W/m.
With an efficiency of 110lm/W and thanks to a narrow space between the LED sources, PRO240 is the strip to use when strong light emission is required, for example for installations at great heights.
At the same time it guarantees extreme uniformity and colour reliability, made superlative by Ra>95.
PRO240 are new generation strips which are increasingly efficient and reliable over time.
Available in an IP20 and IP65 version.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface.
When using double-sided tape degrease the application surface adequately.
Always use with aluminium profiles for heat dissipation.Usage information

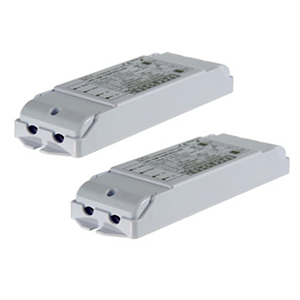

Dimmable 0-100%
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Packaging
Packaged in 5 meters reels.
LED
LED 2358
240 LED/m
Ra>90
Lifetime: >50,000h
Warranty: 5 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step.
Connections
IP65: complete with a 15 cm long IP65/68 M/F cable on 2 sides.
Maximum connection length 5 m.
For longer connections, connect in series or parallel, see diagram.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
