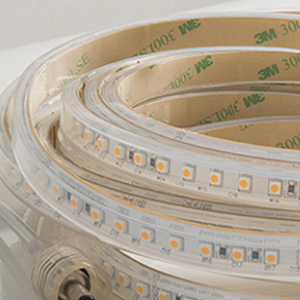

DURASTRIP PRO uses "copper shielded" technology (complete copper coating on the circuit on both sides of the support) designed by our Research and Development Laboratory: the increased quantity of copper improves thermal management and ensures a longer life. DURASTRIP PRO are produced with a dual circuit substrate: the power distributed to every circuit is less, the temperature is halved and the risk of power failures is eliminated. LED density constant on all powers: minimising the "dot" effect even with a grazing light. Using LED 3528 limits the colour shifting effect on the beam emission angles.
Thanks to the new extrusion technology the colour temperature of DURASTRIP PRO IP68 is EXACTLY the same as DURASTRIP PRO IP20. A big advantage that makes it possible to use strips with different IP ratings in adjacent surroundings with the certainty of maintaining a constant light colour and the required effect.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface. When using double-sided tape degrease the application surface adequately.
Usage information

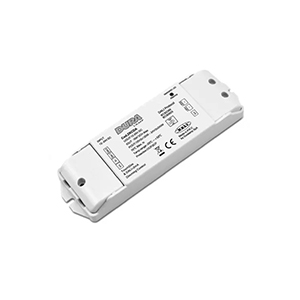

Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible
Packaging
Packaged in 5 meters reels.
LED
LED 3528 128 LED/m - 240 LED/m Ra>95 Lifetime: >60,000h Warranty: 5 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections

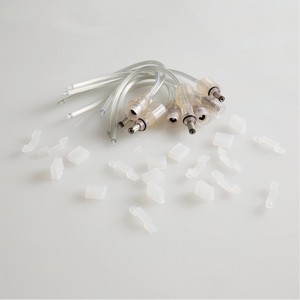

Complete with a 15 cm long IP65/68 M/F cable on 2 sides. Maximum connection length 5 m. Max 4A. For longer connections, connect in series or parallel, see diagram. Strips can be cut to size by following the cutting indications printed on the strips. For IP65/IP68 strips, restore the IP protection after cutting.

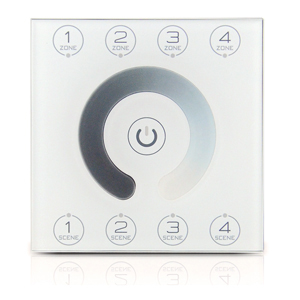

DMX WALL TOUCH DIMMER FOR WHITE LIGHT DURASTRIPEach channel can have 256 levels of light variation and 4 favourite scenes can be saved. "Memory" function: the last colour temperature chosen is recalled when the light is switched back on again; 3 scenes can be saved.

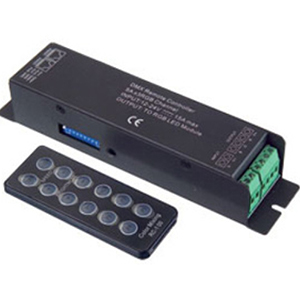

DMX CONTROLLER 3 CHANNELSIt can be used with all DURASTRIP RGB, and white. Version with RJ45 connector that can be used in the traditional way or with the remote control included in the package. Max current 5A / channel.

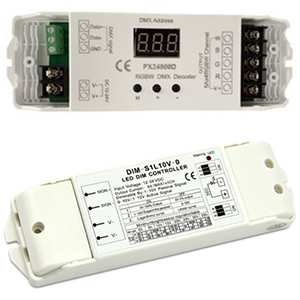

DMX CONTROLLER 4 CHANNELSCan be used with DURASTRIP RGB + white (or 4 channels). Connection diagrams are available at site (in the product datasheet). Max current 5A / channel.
