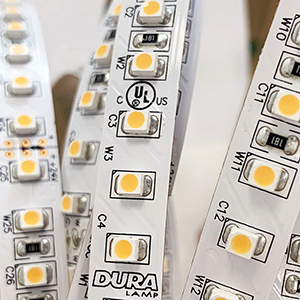

DURASTRIP PRO uses "copper shielded" technology (complete copper coating on the circuit on both sides of the support) designed by our Research and Development Laboratory: the increased quantity of copper improves thermal management and ensures a longer life.
DURASTRIP PRO are produced with a dual circuit substrate: the power distributed to every circuit is less, the temperature is halved and the risk of power failures is eliminated. Using LED 3528 limits the colour shifting effect on the beam emission angles.
Installation
Complete with 3M double-sided tape to attach to the surface and jumpers to be screwed to the surface. When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible
Packaging
Packaged in 5 meters reels.
LED
LED 3528 120 LED/m Ra>95 Lifetime: >60,000h Warranty: 5 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
IP20: terminals with free wires. Maximum connection length 5 m. Max 4A. For longer connections, connect in series or in parallel, see diagram in Info Tech. Strips can be cut to size by following the cutting indications printed on the strips.
New item
24 Vdc
IP20
-25°C +35°C
Risk Group 0
120°
G5 h24
Code 07U272405IN-SB: single circuit, Ra 80, L70; 30,000h; Warranty 3 years.

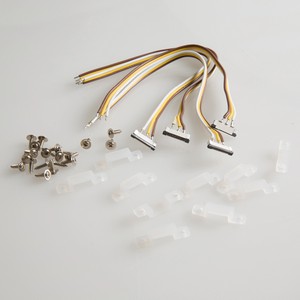

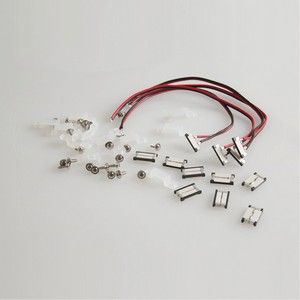

Additional cut and mount kit for Strip IP204 terminal blocks - 15 cm wire - 8 terminal blocks - 12 silicone fixing bridges with screws. Compatible only with art. 07U272405IN-SB or with 96 W items of the 05U range.
DMX WALL TOUCH DIMMER FOR WHITE LIGHT DURASTRIPEach channel can have 256 levels of light variation and 4 favourite scenes can be saved. "Memory" function: the last colour temperature chosen is recalled when the light is switched back on again; 3 scenes can be saved.
DMX CONTROLLER 3 CHANNELSIt can be used with all DURASTRIP RGB, and white. Version with RJ45 connector that can be used in the traditional way or with the remote control included in the package. Max current 5A / channel.
DMX CONTROLLER 4 CHANNELSCan be used with DURASTRIP RGB + white (or 4 channels). Connection diagrams are available at site (in the product datasheet). Max current 5A / channel.
