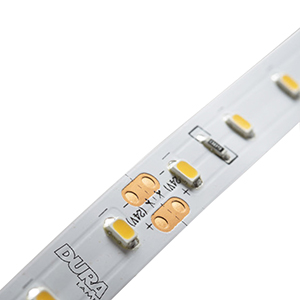

DURASTRIP SELECT were designed to satisfy the range of use that requires an excellent product as well as cost optimization. The SELECT range is produced with a single circuit substrate, a leaner production that takes advantage of production progress to obtain efficient strips with excellent light emission and colour control over time. Available in an IP20 and IP65 version.
Installation
The 25W and 60W strips can be installed directly on the application surface using the included double-sided 3M adhesive or bridges: we recommend the using aluminium profiles only with the 96W strips, in order to optimize heat dissipation. When using double-sided tape degrease the application surface adequately.
Usage information
Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Packaging
Packaged in 5 meters reels. The 24W/m=96W strip is packaged in a 4 m reel.
LED
LED 2835
Connections
Free wires. Strips can be cut to size by following the cutting indications printed on the strips.

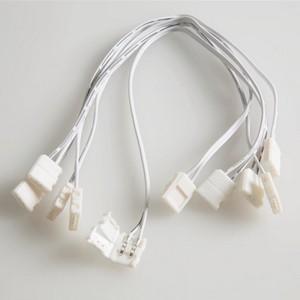

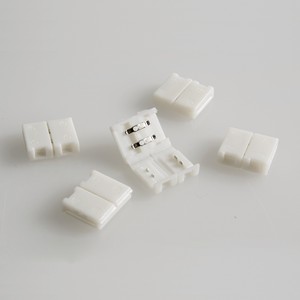

Additional cut and mount kit for Strip IP204 terminal blocks - 15 cm wire - 8 terminal blocks - 12 silicone fixing bridges with screws. Compatible only with art. 07U272405IN-SB or with 96 W items of the 05U range.
