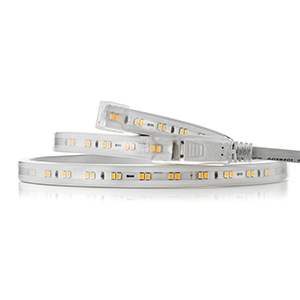

DURASTRIP HiVolt ARCH DIMMABLE
Dimmable version supplied with TRIAC soft dimming achieved with the built in control Chip.
Strip protected from over voltage & and overheating failure in each 20.3 cm strip segment.
Fitted with latest generation weatherproof and UV resistant Extruded PVC body for exterior use. Finished with white base and sides along with a transparent upper screen for a clean light emission.
System features miniature electrical connections and a closing end cap similar to the main strip.
Supplied already cut and wired in the requested measurement, may be provided with IP40 or IP65 rating depending on the installation environment.
Installation
We recommend to order the assembly clips considering to use 4 clips for every metre.
Any particular requests will be specified in the project form.
Usage information
230V: Dimmable TRIAC leading edge 10-100%
120V: Dimmable ELV 10-100%
Refer to the Duralamp site for details on compatible dimmers
Accessories
PC clip for anchoring.
Packaging
Packaged in 5 meters reels.
LED
LED 2835
70 LED/m
230V - 120V
Ra>90
Lifetime: internal use >50,000h; external use>35,000h
Warranty: 3 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step 1 bin.
Connections
Up to 50 metres with a single power supply.
HiVolt IP65 strips are supplied ready to be installed complete with a cable of 1.50 m (black) equipped with a Schuko plug (full collar Schuko IP44) or supplied with free wires (IP65).
In addition to the value of the goods ordered consider the cost of cutting and installing components for every single piece (1.5 m cable, fuse, Schuko plug and cut).
