PRINTC-G
WALK OVER PROFILE: PRINTC-G
Features
Rigid high impact resistant aluminum and PMMA profile complete with white PC diffuser cover.
The profile is walk over and complete with a guide to facilitate insertion of the strip.
This adds strength and protection to the strip.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
13 mm
MAXIMUM POWER:
15W/m
Installation
It is recessed into the cement and fixed with the clips.
Material
6063 aluminium profile with white PMMA screen.
Accessories
Every 1 metre bar is complete with a set of end caps (with and without hole) and a set of mounting clips.
Packaging
Supplied in minimum packages of 5 bars, each one measuring 1 meter complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Notes
The profiles reach IP67 if sealed correctly.

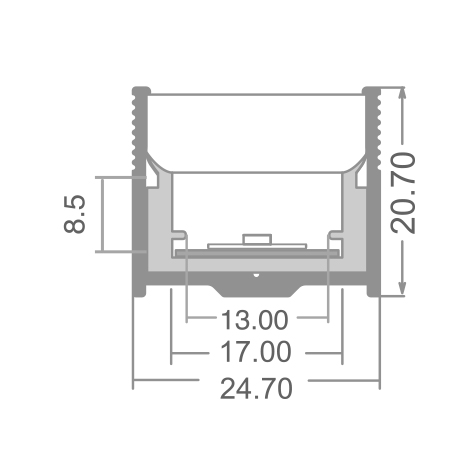

Dimensional characteristics
L
1000 mm
L1
24.7 mm
H
20.7 mm
Electrical characteristics
Operating temperature
-25°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905848286
Product sheet
Tender text
Extended
Compact
PRINTC-G - WALK OVER PROFILE: PRINTC-G
Features
Rigid high impact resistant aluminum and PMMA profile complete with white PC diffuser cover.
The profile is walk over and complete with a guide to facilitate insertion of the strip.
This adds strength and protection to the strip.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
13 mm
MAXIMUM POWER:
15W/m
Installation
It is recessed into the cement and fixed with the clips.
Material
6063 aluminium profile with white PMMA screen.
Accessories
Every 1 metre bar is complete with a set of end caps (with and without hole) and a set of mounting clips.
Packaging
Supplied in minimum packages of 5 bars, each one measuring 1 meter complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Notes
The profiles reach IP67 if sealed correctly.
Dimensional characteristics
Dimensiones
L: 1000 mm
L1: 24.7 mm
H: 20.7 mm
Electrical characteristics
Operating temperature: -25°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Item net weight: 480 gr
Barcode single item: 8011905848286
PRINTC-G - WALK OVER PROFILE: PRINTC-G
Features: Rigid high impact resistant aluminum and PMMA profile complete with white PC diffuser cover. The profile is walk over and complete with a guide to facilitate insertion of the strip. This adds strength and protection to the strip. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 13 mm MAXIMUM POWER:: 15W/m Installation: It is recessed into the cement and fixed with the clips. Material: 6063 aluminium profile with white PMMA screen. Accessories: Every 1 metre bar is complete with a set of end caps (with and without hole) and a set of mounting clips. Packaging: Supplied in minimum packages of 5 bars, each one measuring 1 meter complete with screen and accessories. Spare accessories for additional cutting available with a separate code. Notes: The profiles reach IP67 if sealed correctly. Dimensional characteristics - Dimensiones; L: 1000 mm; L1: 24.7 mm; H: 20.7 mm. Electrical characteristics - Operating temperature: -25°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Item net weight: 480 gr; Barcode single item: 8011905848286.
