PRIN-U
RECESSED PROFILES: PRIN-U
Features

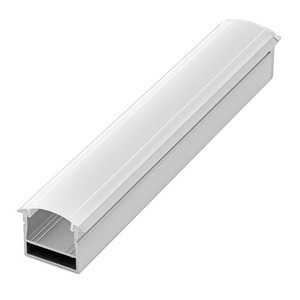

Aluminium profile for recessed installation.
It houses both IP20 and IP68 strips up to 18 mm in width.
Equipped with a compartment to accommodate cables.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
18 mm
Installation
Recessed.
Equipped with a compartment to pass cables through.
Material
6063 Aluminium profile with a white PC screen.
Accessories
Every 2 metre bar is complete with 1 set of end caps (with and without holes) and 1 set of mounting clips.
Packaging
Supplied in packages of 5 bars, each one measuring 2 meters complete with screen and accessories.
Spare accessories available with a separate code.
Screens with different beam openings, spot, flood and asymmetrical available to replace the standard screen it is equipped with.
Characteristic data
Dimensional characteristics
Lighting and photometric features
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905933043
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
PRIN-U - RECESSED PROFILES: PRIN-U
Features
Aluminium profile for recessed installation.
It houses both IP20 and IP68 strips up to 18 mm in width.
Equipped with a compartment to accommodate cables.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
18 mm
Installation
Recessed.
Equipped with a compartment to pass cables through.
Material
6063 Aluminium profile with a white PC screen.
Accessories
Every 2 metre bar is complete with 1 set of end caps (with and without holes) and 1 set of mounting clips.
Packaging
Supplied in packages of 5 bars, each one measuring 2 meters complete with screen and accessories.
Spare accessories available with a separate code.
Screens with different beam openings, spot, flood and asymmetrical available to replace the standard screen it is equipped with.
Characteristic data
Base: Free Wire

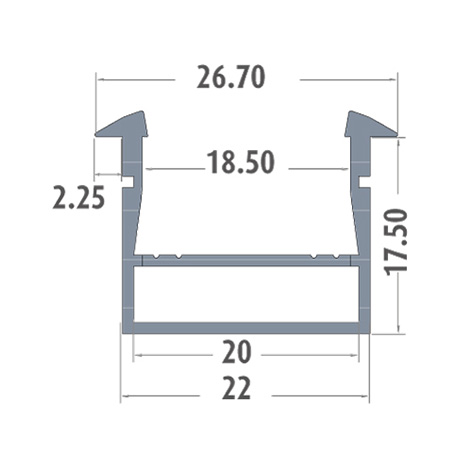

Dimensional characteristics
Dimensiones
L: 2000 mm
L1: 22 mm
H: 19.8 mm
Lighting and photometric features
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Operating temperature: -25°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Item net weight: 640 gr
Barcode single item: 8011905933043
Number of pieces multiple pack: 5
Minimum order quantity: 5
Minimum packaging: 5 / 5
PRIN-U - RECESSED PROFILES: PRIN-U
Features: Aluminium profile for recessed installation. It houses both IP20 and IP68 strips up to 18 mm in width. Equipped with a compartment to accommodate cables. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 18 mm Installation: Recessed. Equipped with a compartment to pass cables through. Material: 6063 Aluminium profile with a white PC screen. Accessories: Every 2 metre bar is complete with 1 set of end caps (with and without holes) and 1 set of mounting clips. Packaging: Supplied in packages of 5 bars, each one measuring 2 meters complete with screen and accessories. Spare accessories available with a separate code. Screens with different beam openings, spot, flood and asymmetrical available to replace the standard screen it is equipped with. Characteristic data - Base: Free Wire. Dimensional characteristics - Dimensiones; L: 2000 mm; L1: 22 mm; H: 19.8 mm. Lighting and photometric features - Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Operating temperature: -25°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Item net weight: 640 gr; Barcode single item: 8011905933043; Number of pieces multiple pack: 5; Minimum order quantity: 5; Minimum packaging: 5 / 5.
