Typology
LED projector "minimal design" for outdoor and indoor applications.
Features
It can be connected to motion or twilight sensors.
Very small dimensions and design that meets the most demanding aesthetic requirements.
Supplied with an orientable mounting bracket.
Material
Painted die-cast metal body.
Beam
120°
Notes
Do not use with dimmer.
Free wire for professional use (1 m long).
Characteristic data
Dimensional characteristics
L
189 mm
L1
29 mm
H
133 mm
H2
210 mm
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
30 kWh/1000h
Operating temperature
-25°C / +35°C

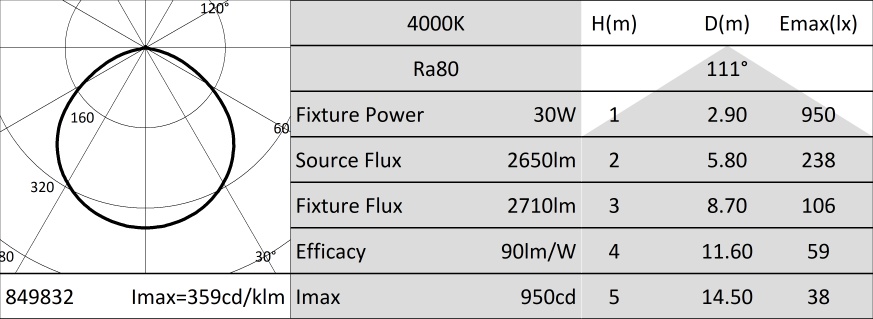

Photometry
Other Infotech
Light source replaceability
Replaceable light source by a professional.
Control gear replaceability
Non-replaceable control gear.
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905849832
Number of pieces multiple pack
20
Barcode multiple pack
8011905850340
Product sheet
Tender text
Extended
Compact
PANTH-B30N - PANTH EVO
Typology
LED projector "minimal design" for outdoor and indoor applications.
Features
It can be connected to motion or twilight sensors.
Very small dimensions and design that meets the most demanding aesthetic requirements.
Supplied with an orientable mounting bracket.
Material
Painted die-cast metal body.
Beam
120°
Notes
Do not use with dimmer.
Free wire for professional use (1 m long).
Characteristic data
Power: 30 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
Base: Free Wire
IP: 65
Flux: 2650 lm
PF: 0,98
Tc: 4000 K
Ra: >80
LED Warranty: G5h24
Axis: 950 cd
RG: RG1
Color: Black
Dimensional characteristics
Dimensiones
L: 189 mm
L1: 29 mm
H: 133 mm
H2: 210 mm
Lighting and photometric features
Beam opening: 120°
Flux: 2650 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 30 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,98
Input current: 0.13 A
Weighted energy consumption: 30 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 620 gr
Barcode single item: 8011905849832
Number of pieces multiple pack: 20
Barcode multiple pack: 8011905850340
Minimum order quantity: 1
Other Infotech
Reflector: Yes
Light source replaceability: Replaceable light source by a professional.
Control gear replaceability: Non-replaceable control gear.
PANTH-B30N - PANTH EVO
Typology: LED projector "minimal design" for outdoor and indoor applications. Features: It can be connected to motion or twilight sensors. Very small dimensions and design that meets the most demanding aesthetic requirements. Supplied with an orientable mounting bracket. Material: Painted die-cast metal body. Beam: 120° Notes: Do not use with dimmer. Free wire for professional use (1 m long). Characteristic data - Power: 30 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; Base: Free Wire; IP: 65; Flux: 2650 lm; PF: 0,98; Tc: 4000 K; Ra: >80; LED Warranty: G5h24; Axis: 950 cd; RG: RG1; Color: Black. Dimensional characteristics - Dimensiones; L: 189 mm; L1: 29 mm; H: 133 mm; H2: 210 mm. Lighting and photometric features - Beam opening: 120°; Flux: 2650 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 30 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,98; Input current: 0.13 A; Weighted energy consumption: 30 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-5:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 620 gr; Barcode single item: 8011905849832; Number of pieces multiple pack: 20; Barcode multiple pack: 8011905850340; Minimum order quantity: 1. Other Infotech - Reflector: Yes; Light source replaceability: Replaceable light source by a professional; Control gear replaceability: Non-replaceable control gear.
