Typology
Super-compact professional projectors for large commercial and industrial spaces; uses highly efficient SMD technology, up to 175lm/W.
Features
Ultra-flat, highly efficient, long service life: reliable products for use in all areas where powerful light output with significant energy savings is required.
Equipped with voltage surge protection, see details.
Installation
Free-standing or fixed to the surface with its swivelling bracket.
Cable lenght: 95 cm
Material
Die-cast aluminium body.
Suitable for use in dusty and humid environments due to its high IP rating.
Usage information
In case of installation in public areas, it is advisable to use overvoltage surge protection. The HP2 models are designed to withstand voltage peaks up to 4kV.
Beam
Symmetrical beam angle: 110°.
PIR
Ambient lighting: 3-2000 LUX (dimmable)
Turn on time: min: 10sec 3sec - max: 7min 3min
Installation height: 1.8 m 2.5 m
Motion Detection Speed: 0.6~1.5m/s
Detection distance: max.10 m (<24 C)
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Electrical characteristics
Weighted energy consumption
40 kWh/1000h
Energy efficiency class
This product contains a light source of energy efficiency class "A"
Operating temperature
-25°C / +35°C
Other Infotech
Light source replaceability
Replaceable light source by a professional.
Control gear replaceability
Non-replaceable control gear.
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905326296
Number of pieces multiple pack
10
Product sheet
Tender text
Extended
Compact

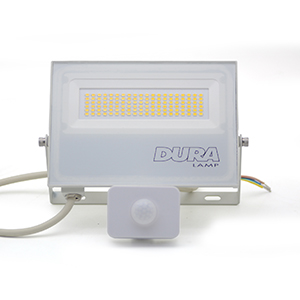

PAH1L07WHNS - PANTH H1 - SENSOR
Typology
Super-compact professional projectors for large commercial and industrial spaces; uses highly efficient SMD technology, up to 175lm/W.
Features
Ultra-flat, highly efficient, long service life: reliable products for use in all areas where powerful light output with significant energy savings is required.
Equipped with voltage surge protection, see details.
Installation
Free-standing or fixed to the surface with its swivelling bracket.
Cable lenght: 95 cm
Material
Die-cast aluminium body.
Suitable for use in dusty and humid environments due to its high IP rating.
Usage information
In case of installation in public areas, it is advisable to use overvoltage surge protection. The HP2 models are designed to withstand voltage peaks up to 4kV.
Beam
Symmetrical beam angle: 110°.
PIR
Ambient lighting: 3-2000 LUX (dimmable)
Turn on time: min: 10sec 3sec - max: 7min 3min
Installation height: 1.8 m 2.5 m
Motion Detection Speed: 0.6~1.5m/s
Detection distance: max.10 m (<24 C)
Characteristic data
Power: 40 W
Beam: 110°
Dimmable: No
Input: 220-240 Vac
Base: Free terminals
IP: 65
Flux: 7000 lm
PF: 0.95
Tc: 4000 K
Ra: 80
LED Warranty: G5h24
Axis: 2570 cd
IK: IK04
RG: RG1
Color: White
Dimensional characteristics
Dimensiones
L: 190 mm
L1: 125 mm
H: 29 mm
Lighting and photometric features
Beam opening: 110°
Flux: 7000 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: 80
Lifespan: 50000 h
LED lifespan: L70B20
Electrical characteristics
Rated power: 40 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0.95
Input current: 0.18 A
Weighted energy consumption: 40 kWh/1000h
Energy efficiency class: This product contains a light source of energy efficiency class "A"
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 572 gr
Barcode single item: 8011905326296
Number of pieces multiple pack: 10
Minimum order quantity: 1
Minimum packaging: 1 / 10
Other Infotech
Flicker Free: Yes
Light source replaceability: Replaceable light source by a professional.
Control gear replaceability: Non-replaceable control gear.
PAH1L07WHNS - PANTH H1 - SENSOR
Typology: Super-compact professional projectors for large commercial and industrial spaces; uses highly efficient SMD technology, up to 175lm/W. Features: Ultra-flat, highly efficient, long service life: reliable products for use in all areas where powerful light output with significant energy savings is required. Equipped with voltage surge protection, see details. Installation: Free-standing or fixed to the surface with its swivelling bracket. Cable lenght: 95 cm Material: Die-cast aluminium body. Suitable for use in dusty and humid environments due to its high IP rating. Usage information: In case of installation in public areas, it is advisable to use overvoltage surge protection. The HP2 models are designed to withstand voltage peaks up to 4kV. Beam: Symmetrical beam angle: 110°. PIR: Ambient lighting: 3-2000 LUX (dimmable) Turn on time: min: 10sec 3sec - max: 7min 3min Installation height: 1.8 m 2.5 m Motion Detection Speed: 0.6~1.5m/s Detection distance: max.10 m (<24 C) Characteristic data - Power: 40 W; Beam: 110°; Dimmable: No; Input: 220-240 Vac; Base: Free terminals; IP: 65; Flux: 7000 lm; PF: 0.95; Tc: 4000 K; Ra: 80; LED Warranty: G5h24; Axis: 2570 cd; IK: IK04; RG: RG1; Color: White. Dimensional characteristics - Dimensiones; L: 190 mm; L1: 125 mm; H: 29 mm. Lighting and photometric features - Beam opening: 110°; Flux: 7000 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: 80; Lifespan: 50000 h; LED lifespan: L70B20. Electrical characteristics - Rated power: 40 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0.95; Input current: 0.18 A; Weighted energy consumption: 40 kWh/1000h; Energy efficiency class: This product contains a light source of energy efficiency class "A"; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-5:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 572 gr; Barcode single item: 8011905326296; Number of pieces multiple pack: 10; Minimum order quantity: 1; Minimum packaging: 1 / 10. Other Infotech - Flicker Free: Yes; Light source replaceability: Replaceable light source by a professional; Control gear replaceability: Non-replaceable control gear.
