P08B-S-PF-300
DECORATIVE PROFILES – FLOOR/WALL: P08B
Sorry this item is not available anymoreFeatures
Profile for floor or wall installation with a hidden source: decorative and functional use as a courtesy light.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
10W/m
Installation
Surface installation with screws (not included).
Material
6063 aluminium profile with white PMMA screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps (with and without hole) for the PMMA profile and 3 sets of metal end caps for the aluminium profile.
Packaging
Supplied in minimum packages of 5 bars, each one measuring 3 meters.
Spare accessories for additional cutting available with a separate code.

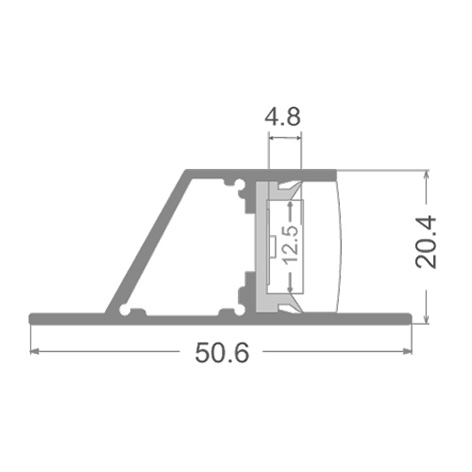

Dimensional characteristics
L
3000 mm
L1
50.6 mm
H
20.4 mm
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905913649
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P08B-S-PF-300 - DECORATIVE PROFILES – FLOOR/WALL: P08B
Features
Profile for floor or wall installation with a hidden source: decorative and functional use as a courtesy light.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
10W/m
Installation
Surface installation with screws (not included).
Material
6063 aluminium profile with white PMMA screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps (with and without hole) for the PMMA profile and 3 sets of metal end caps for the aluminium profile.
Packaging
Supplied in minimum packages of 5 bars, each one measuring 3 meters.
Spare accessories for additional cutting available with a separate code.
Dimensional characteristics
Dimensiones
L: 3000 mm
L1: 50.6 mm
H: 20.4 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905913649
Number of pieces multiple pack: 5
P08B-S-PF-300 - DECORATIVE PROFILES – FLOOR/WALL: P08B
Features: Profile for floor or wall installation with a hidden source: decorative and functional use as a courtesy light. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 12 mm MAXIMUM POWER:: 10W/m Installation: Surface installation with screws (not included). Material: 6063 aluminium profile with white PMMA screen. Accessories: Every 3 metre bar is complete with 3 sets of end caps (with and without hole) for the PMMA profile and 3 sets of metal end caps for the aluminium profile. Packaging: Supplied in minimum packages of 5 bars, each one measuring 3 meters. Spare accessories for additional cutting available with a separate code. Dimensional characteristics - Dimensiones; L: 3000 mm; L1: 50.6 mm; H: 20.4 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905913649; Number of pieces multiple pack: 5.
