P07A-S-PF-300
DECORATIVE SUSPENSION PROFILES: P07A
Sorry this item is not available anymoreFeatures
Surface or suspension installation profile.
Slightly extruded rounded diffuser.
The dimensions of the profile, 5 x 6 cm, and the 180° beam opening, allows for this profile to be installed anywhere whilst responding to many needs using the same aesthetic element.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
40 mm
MAXIMUM POWER:
40W/m
Installation
Surface or suspension installation.
The profile housing allows for some drivers to be inserted: always check dimensions and electrical loads.
Material
6063 aluminium profile with white polycarbonate screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps (with and without hole) and 3 sets of fixing brackets (necessary for surface and suspension installation) and 3 sets of suspension cables.
Packaging
Supplied in packaging of 1 bars of 3 meters complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Notes
Thanks to the possibility of using different strips the profile becomes a fixture that can provide different light temperatures, to be used depending on the activities carried out in that space at different times during the day.
Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905913366
Product sheet
Tender text
Extended
Compact
P07A-S-PF-300 - DECORATIVE SUSPENSION PROFILES: P07A
Features
Surface or suspension installation profile.
Slightly extruded rounded diffuser.
The dimensions of the profile, 5 x 6 cm, and the 180° beam opening, allows for this profile to be installed anywhere whilst responding to many needs using the same aesthetic element.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
40 mm
MAXIMUM POWER:
40W/m
Installation
Surface or suspension installation.
The profile housing allows for some drivers to be inserted: always check dimensions and electrical loads.
Material
6063 aluminium profile with white polycarbonate screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps (with and without hole) and 3 sets of fixing brackets (necessary for surface and suspension installation) and 3 sets of suspension cables.
Packaging
Supplied as a single 3 metre bars complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Notes
Thanks to the possibility of using different strips the profile becomes a fixture that can provide different light temperatures, to be used depending on the activities carried out in that space at different times during the day.

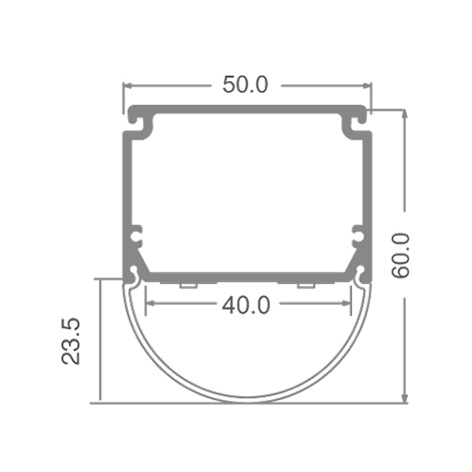

Dimensional characteristics
Dimensiones
L: 3000 mm
L1: 50 mm
H: 60 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905913366
P07A-S-PF-300 - DECORATIVE SUSPENSION PROFILES: P07A
Features: Surface or suspension installation profile. Slightly extruded rounded diffuser. The dimensions of the profile, 5 x 6 cm, and the 180° beam opening, allows for this profile to be installed anywhere whilst responding to many needs using the same aesthetic element. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 40 mm MAXIMUM POWER:: 40W/m Installation: Surface or suspension installation. The profile housing allows for some drivers to be inserted: always check dimensions and electrical loads. Material: 6063 aluminium profile with white polycarbonate screen. Accessories: Every 3 metre bar is complete with 3 sets of end caps (with and without hole) and 3 sets of fixing brackets (necessary for surface and suspension installation) and 3 sets of suspension cables. Packaging: Supplied as a single 3 metre bars complete with screen and accessories. Spare accessories for additional cutting available with a separate code. Notes: Thanks to the possibility of using different strips the profile becomes a fixture that can provide different light temperatures, to be used depending on the activities carried out in that space at different times during the day. Dimensional characteristics - Dimensiones; L: 3000 mm; L1: 50 mm; H: 60 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905913366.
