P06H-S-PF-300
DECORATIVE SUSPENSION PROFILES: P06H
Features
Suspension profile.
Circular diffuser with 360° light emission.
The essential design of this profile and the 360° beam opening, allows for this profile to be installed anywhere whilst responding to many needs using the same aesthetic element.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
30 mm
MAXIMUM POWER:
42W/m
Installation
Suspension installation.
Driver and controller must be positioned remotely to the profile.
Material
6063 aluminium profile with white polycarbonate screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps (without hole) and 3 sets of suspension cables.
Packaging
Supplied in packaging of 1 bars of 3 meters complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Notes
Thanks to the possibility of using different strips the profile becomes a fixture that can provide different light temperatures, to be used depending on the activities carried out in that space at different times during the day.
Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905913212
Product sheet
Tender text
Extended
Compact
P06H-S-PF-300 - DECORATIVE SUSPENSION PROFILES: P06H
Features
Suspension profile.
Circular diffuser with 360° light emission.
The essential design of this profile and the 360° beam opening, allows for this profile to be installed anywhere whilst responding to many needs using the same aesthetic element.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
30 mm
MAXIMUM POWER:
42W/m
Installation
Suspension installation.
Driver and controller must be positioned remotely to the profile.
Material
6063 aluminium profile with white polycarbonate screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps (without hole) and 3 sets of suspension cables.
Packaging
Supplied as a single 3 metre bars complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Notes
Thanks to the possibility of using different strips the profile becomes a fixture that can provide different light temperatures, to be used depending on the activities carried out in that space at different times during the day.

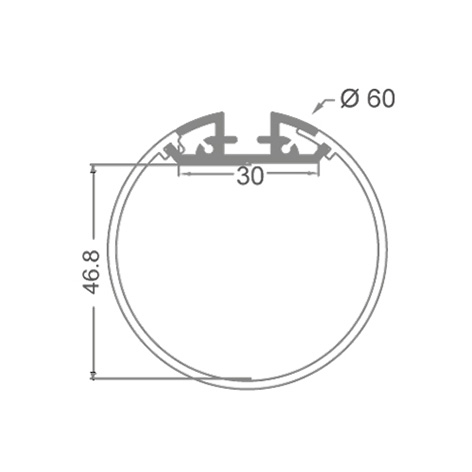

Dimensional characteristics
Dimensiones
L: 3000 mm
ø: 60 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905913212
P06H-S-PF-300 - DECORATIVE SUSPENSION PROFILES: P06H
Features: Suspension profile. Circular diffuser with 360° light emission. The essential design of this profile and the 360° beam opening, allows for this profile to be installed anywhere whilst responding to many needs using the same aesthetic element. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 30 mm MAXIMUM POWER:: 42W/m Installation: Suspension installation. Driver and controller must be positioned remotely to the profile. Material: 6063 aluminium profile with white polycarbonate screen. Accessories: Every 3 metre bar is complete with 3 sets of end caps (without hole) and 3 sets of suspension cables. Packaging: Supplied as a single 3 metre bars complete with screen and accessories. Spare accessories for additional cutting available with a separate code. Notes: Thanks to the possibility of using different strips the profile becomes a fixture that can provide different light temperatures, to be used depending on the activities carried out in that space at different times during the day. Dimensional characteristics - Dimensiones; L: 3000 mm; ø: 60 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905913212.
