P04D-S-PF-300
WARDROBE AND HANDRAIL PROFILES: P04D
Features
Considerably thick profile with a circular section of 30 mm.
Can be used in wardrobes, handrails and as a decorative element.
The profile can rotate 180° on supports to position the light where necessary.
Maximum load: 20 kg/m.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
30W/m
Installation
Laterally with wall brackets or top support with the right bracket.
Material
6063 aluminium profile with white polycarbonate screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps and 3 sets of supports for wall installation.
Packaging
Supplied in minimum packages of 5 bars, each one measuring 3 meters complete with screen and accessories.
Spare accessories available with a separate code.
Bracket for ceiling installation available with a separate code.

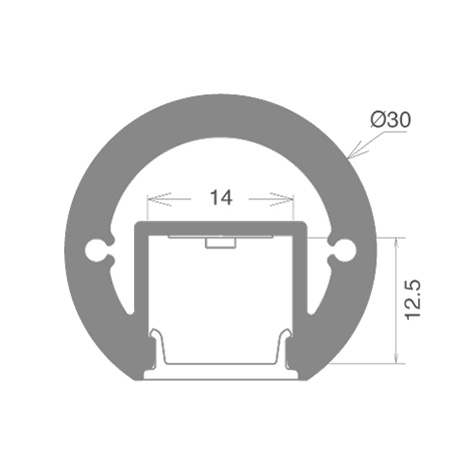

Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905912932
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P04D-S-PF-300 - WARDROBE AND HANDRAIL PROFILES: P04D
Features
Considerably thick profile with a circular section of 30 mm.
Can be used in wardrobes, handrails and as a decorative element.
The profile can rotate 180° on supports to position the light where necessary.
Maximum load: 20 kg/m.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
30W/m
Installation
Laterally with wall brackets or top support with the right bracket.
Material
6063 aluminium profile with white polycarbonate screen.
Accessories
Every 3 metre bar is complete with 3 sets of end caps and 3 sets of supports for wall installation.
Packaging
Supplied in minimum packages of 5 bars, each one measuring 3 meters complete with screen and accessories.
Spare accessories available with a separate code.
Bracket for ceiling installation available with a separate code.
Dimensional characteristics
Dimensiones
L: 3000 mm
ø: 30 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905912932
Number of pieces multiple pack: 5
P04D-S-PF-300 - WARDROBE AND HANDRAIL PROFILES: P04D
Features: Considerably thick profile with a circular section of 30 mm. Can be used in wardrobes, handrails and as a decorative element. The profile can rotate 180° on supports to position the light where necessary. Maximum load: 20 kg/m.: CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 12 mm MAXIMUM POWER:: 30W/m Installation: Laterally with wall brackets or top support with the right bracket. Material: 6063 aluminium profile with white polycarbonate screen. Accessories: Every 3 metre bar is complete with 3 sets of end caps and 3 sets of supports for wall installation. Packaging: Supplied in minimum packages of 5 bars, each one measuring 3 meters complete with screen and accessories. Spare accessories available with a separate code. Bracket for ceiling installation available with a separate code. Dimensional characteristics - Dimensiones; L: 3000 mm; ø: 30 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905912932; Number of pieces multiple pack: 5.
