P04C-S-PF-300
ADJUSTABLE PROFILES: P04C
Features
Profile adjustable to around 30° with a wall-washer function for surface installation: the inclined support is fixed and is part of the profile.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
14 mm
MAXIMUM POWER:
30W/m
Installation
Surface installation with double-sided tape (not supplied).
Cabling can be in line with the profile or exit the bottom of the profile.
Material
6063 aluminium profile with white PMMA screen.
Accessories
Every 3 metre bar is complete with 3 end caps (with and without hole).
Packaging
Supplied in minimum packages of 5 bars, each one measuring 3 meters complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905912673
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P04C-S-PF-300 - ADJUSTABLE PROFILES: P04C
Features
Profile adjustable to around 30° with a wall-washer function for surface installation: the inclined support is fixed and is part of the profile.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
14 mm
MAXIMUM POWER:
30W/m
Installation
Surface installation with double-sided tape (not supplied).
Cabling can be in line with the profile or exit the bottom of the profile.
Material
6063 aluminium profile with white PMMA screen.
Accessories
Every 3 metre bar is complete with 3 end caps (with and without hole).
Packaging
Supplied in minimum packages of 5 bars, each one measuring 3 meters complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.

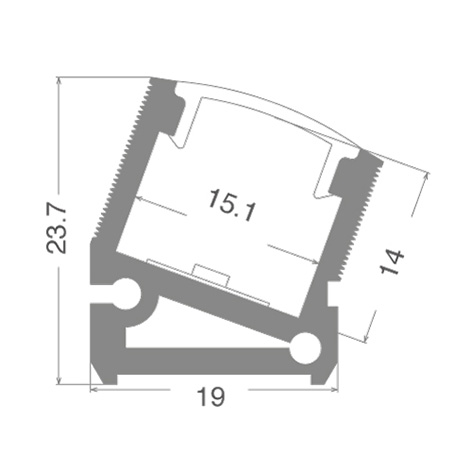

Dimensional characteristics
Dimensiones
L: 3000 mm
L1: 19 mm
H: 23.7 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905912673
Number of pieces multiple pack: 5
P04C-S-PF-300 - ADJUSTABLE PROFILES: P04C
Features: Profile adjustable to around 30° with a wall-washer function for surface installation: the inclined support is fixed and is part of the profile. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 14 mm MAXIMUM POWER:: 30W/m Installation: Surface installation with double-sided tape (not supplied). Cabling can be in line with the profile or exit the bottom of the profile. Material: 6063 aluminium profile with white PMMA screen. Accessories: Every 3 metre bar is complete with 3 end caps (with and without hole). Packaging: Supplied in minimum packages of 5 bars, each one measuring 3 meters complete with screen and accessories. Spare accessories for additional cutting available with a separate code. Dimensional characteristics - Dimensiones; L: 3000 mm; L1: 19 mm; H: 23.7 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905912673; Number of pieces multiple pack: 5.
