Features
Polycarbonate diffuser profile designed to protect strips from dirt and allow for perfect maintenance.
It is positioned on the strip and attached with the double-sided tape provided.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
10 mm
Installation
Surface installation with double-sided tape.
Material
Polycarbonate profile.
Packaging
Supplied in minimum packages of 10 pieces of 1 metre bars.
Spare accessories for additional cutting available with a separate code.
Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905923501
Number of pieces multiple pack
10
Product sheet
Tender text
Extended
Compact
P01E-S-PF-100 - PROTECTIVE PROFILE: P01E
Features
Polycarbonate diffuser profile designed to protect strips from dirt and allow for perfect maintenance.
It is positioned on the strip and attached with the double-sided tape provided.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
10 mm
Installation
Surface installation with double-sided tape.
Material
Polycarbonate profile.
Packaging
Supplied in minimum packages of 10 pieces of 1 metre bars.
Spare accessories for additional cutting available with a separate code.

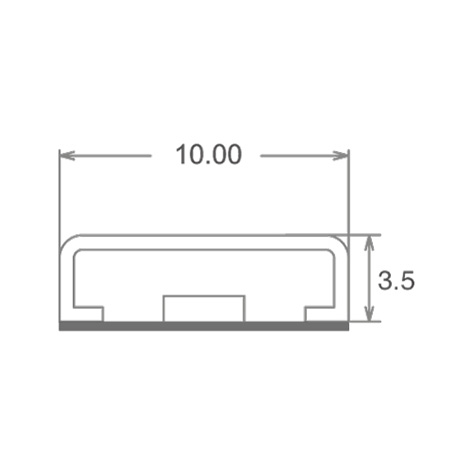

Dimensional characteristics
Dimensiones
L: 1000 mm
L1: 12 mm
H: 3.5 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905923501
Number of pieces multiple pack: 10
P01E-S-PF-100 - PROTECTIVE PROFILE: P01E
Features: Polycarbonate diffuser profile designed to protect strips from dirt and allow for perfect maintenance. It is positioned on the strip and attached with the double-sided tape provided. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 10 mm Installation: Surface installation with double-sided tape. Material: Polycarbonate profile. Packaging: Supplied in minimum packages of 10 pieces of 1 metre bars. Spare accessories for additional cutting available with a separate code. Dimensional characteristics - Dimensiones; L: 1000 mm; L1: 12 mm; H: 3.5 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905923501; Number of pieces multiple pack: 10.
