Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Natural light
Colour rendering index
>90
Electrical characteristics
Operating temperature
-25°C / +35°C

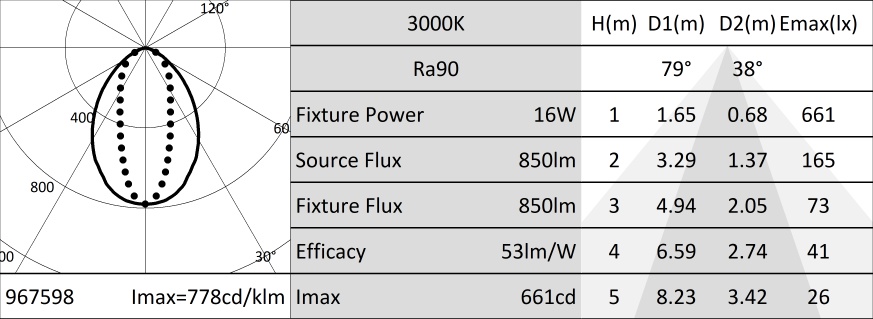

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905967598
Product sheet
Tender text
Extended
Compact
MNLO16EP12WGC30E - MINILINI
Characteristic data
Power: 16 W
Beam: 36°x80°
Dimmable: Yes
Input: 220-240 Vac
IP: 65
Flux: 850 lm
Tc: 3000 K
Ra: >90
LED Warranty: G5h24
Axis: 640 cd
RG: RG1
Dimensional characteristics
Dimensiones
L: 301 mm
L1: 40 mm
H: 40 mm
Lighting and photometric features
Beam opening: 36°x80°
Flux: 850 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Natural light
Colour rendering index: >90
Lifespan: 50000 h
LED lifespan: L70B20
Electrical characteristics
Rated power: 16 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: Yes
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item: 8011905967598
Minimum order quantity: 1
MNLO16EP12WGC30E - MINILINI
Characteristic data - Power: 16 W; Beam: 36°x80°; Dimmable: Yes; Input: 220-240 Vac; IP: 65; Flux: 850 lm; Tc: 3000 K; Ra: >90; LED Warranty: G5h24; Axis: 640 cd; RG: RG1. Dimensional characteristics - Dimensiones; L: 301 mm; L1: 40 mm; H: 40 mm. Lighting and photometric features - Beam opening: 36°x80°; Flux: 850 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Natural light; Colour rendering index: >90; Lifespan: 50000 h; LED lifespan: L70B20. Electrical characteristics - Rated power: 16 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: Yes; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-5:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Barcode single item: 8011905967598; Minimum order quantity: 1.
