LP6262UGR-840D
SLIMFLUX DALI MULTI CURRENT PANEL RA>80 - PRO
Typology
Very thin LED panel with UGR<19, lateral lighting and multi current power supply.
Features

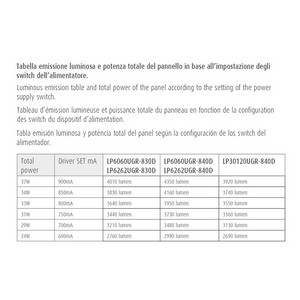

The multi current power supply unit makes it possible to choose the drive current of the fixture upon installation depending on the required illumination.
This type of panel allows for installation of the same product in different areas to obtain the most suitable amount of light in each space while maximising energy savings.
Luminaire is equipped with a fall arrest system and a terminal board for cascade connections.
Driver ENEC.
Material
White painted aluminium body; high transmittance optical PMMA screen.
Emergency
SLIMFLUX panels can be used with standby emergency kit, code KTEMR03.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
37 kWh/1000h
Operating temperature
-20°C / +45°C
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905933296
Number of pieces multiple pack
5
Barcode multiple pack
8011905933555
Product sheet
Tender text
Extended
Compact
LP6262UGR-840D - SLIMFLUX DALI MULTI CURRENT PANEL RA>80 - PRO
Typology
Very thin LED panel with UGR<19, lateral lighting and multi current power supply.
Features
The multi current power supply unit makes it possible to choose the drive current of the fixture upon installation depending on the required illumination.
This type of panel allows for installation of the same product in different areas to obtain the most suitable amount of light in each space while maximising energy savings.
Luminaire is equipped with a fall arrest system and a terminal board for cascade connections.
Driver ENEC.
Material
White painted aluminium body; high transmittance optical PMMA screen.
Emergency
SLIMFLUX panels can be used with standby emergency kit, code KTEMR03.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Power: 37 W
Beam: 90°
Dimmable: DALI 2
Input: 220-240 Vac
Base: Screws
IP: 20
Optical compartment IP: 43
Flux: 4350 lm
PF: 0,95
UGR: <19
Tc: 4000 K
Ra: >80
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 620 mm
H: 9 mm
L2: 620 mm
Lighting and photometric features
Beam opening: 90°
Flux: 4350 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L80B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 37 W
Input voltage: 220-240 Vac
undefined: 50 Hz
Dimmable: DALI 2
Power factor (PF): 0,95
Weighted energy consumtion: 37 kWh/1000h
Energy class: A++
Number of cycles: 100000
Operating temperature: -20°C / +45°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
Standards and Directives
2009/125/EC, 1194/2012, 2015/1428, 2010/30/EU
874/2012, 2011/65/EU, 2012/19/EU, 2014/30/EU
2014/35/EU, 2015/863
CEI EN 55015:2020
CEI EN 60598-1:2015
CEI EN 60598-1/A1:2019
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019
CEI EN 61000-3-3:2014
CEI EN 61547:2010
CEI EN 62031:2009
CEI EN 62031/A1/A2:2015
CEI EN 62471:2010
IEC TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 2200 gr
Barcode single item: 8011905933296
Number of pieces multiple pack: 5
Barcode multiple pack: 8011905933555
Other Infotech
Flicker Free: Yes
Picture 2
