Typology

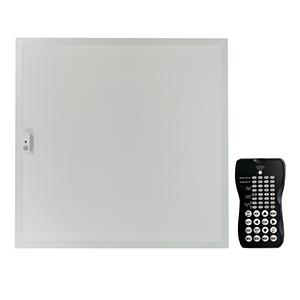

Direct-light LED panel, equipped with sensor remote-controlled.
Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection.
Features
The backlit panel is composed of a metal material back compartment providing a heat sink function.
The sensor can be removed; replacement sensor available as a separate part number (KTLP-SR).
Colour rendering: Ra>80.
Installation
Consider more depth for recessed installations.
Surface mounting: select the recommended frame from the accessories table.
Material
Painted white aluminium body; anti-yellowing PS screen.
Characteristic data

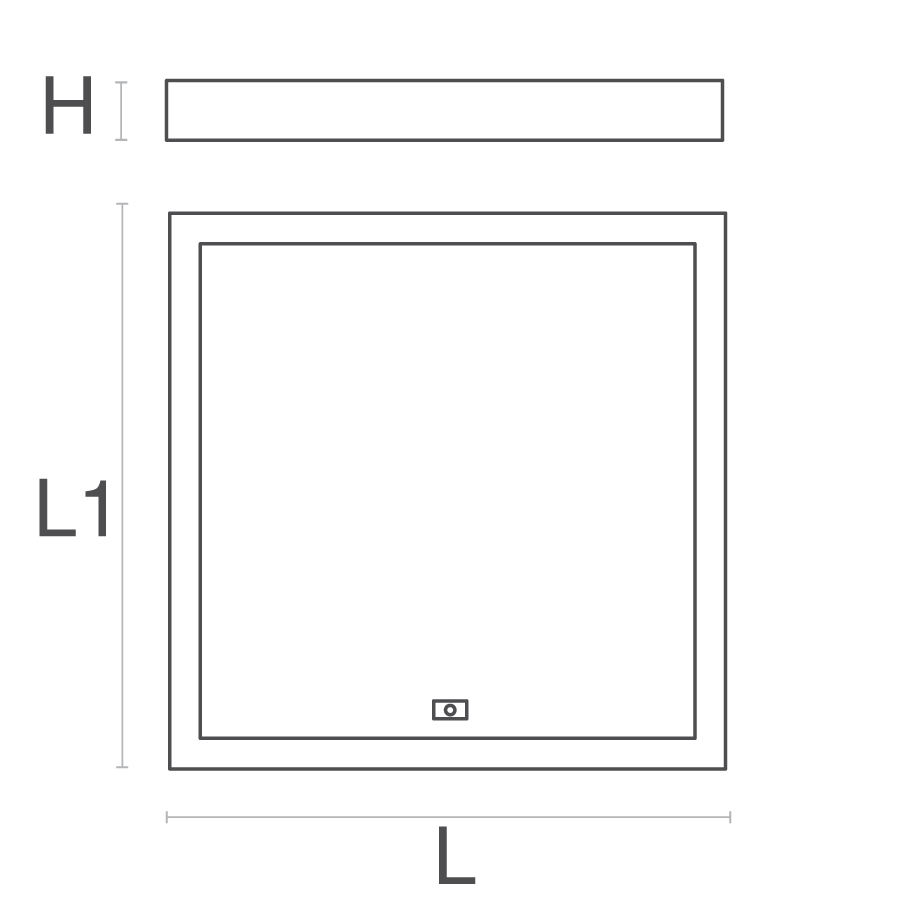

Dimensional characteristics
L
595 mm
L1
595 mm
H
32 mm
H2
46 mm
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>90
Electrical characteristics
Operating temperature
-25°C / +40°C
Other Infotech
Light source replaceability
Replaceable (LED only) light source by a professional.
Control gear replaceability
Replaceable control gear by a professional.
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905331290
Number of pieces multiple pack
6
Product sheet
Tender text
Extended
Compact
LP6060B1UGRS-940 - SLIMFLUX BL SENSOR
Typology
Direct-light LED panel, equipped with sensor remote-controlled.
Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection.
Features
The backlit panel is composed of a metal material back compartment providing a heat sink function.
The sensor can be removed; replacement sensor available as a separate part number (KTLP-SR).
Colour rendering: Ra>80.
Installation
Consider more depth for recessed installations.
Surface mounting: select the recommended frame from the accessories table.
Material
Painted white aluminium body; anti-yellowing PS screen.
Characteristic data
Power: 36 W
Dimmable: No
Input: 220-240 Vac
Base: Free Wire
IP: 20
Optical compartment IP: 40
Flux: 4000 lm
PF: 0,9
UGR: <19
Tc: 4000 K
Ra: >80
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 595 mm
L1: 595 mm
H: 32 mm
H2: 46 mm
Lighting and photometric features
Flux: 4000 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L70B20
UGR: <19
Electrical characteristics
Rated power: 36 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,9
Operating temperature: -25°C / +40°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 3000 gr
Barcode single item: 8011905331290
Number of pieces multiple pack: 6
Minimum order quantity: 6
Minimum packaging: 6 / 6
Other Infotech
Flicker Free: Yes
Light source replaceability: Replaceable (LED only) light source by a professional.
Control gear replaceability: Replaceable control gear by a professional.
LP6060B1UGRS-940 - SLIMFLUX BL SENSOR
Typology: Direct-light LED panel, equipped with sensor remote-controlled. Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection. Features: The backlit panel is composed of a metal material back compartment providing a heat sink function. The sensor can be removed; replacement sensor available as a separate part number (KTLP-SR). Colour rendering: Ra>80. Installation: Consider more depth for recessed installations. Surface mounting: select the recommended frame from the accessories table. Material: Painted white aluminium body; anti-yellowing PS screen. Characteristic data - Power: 36 W; Dimmable: No; Input: 220-240 Vac; Base: Free Wire; IP: 20; Optical compartment IP: 40; Flux: 4000 lm; PF: 0,9; UGR: <19; Tc: 4000 K; Ra: >80; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 595 mm; L1: 595 mm; H: 32 mm; H2: 46 mm. Lighting and photometric features - Flux: 4000 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 50000 h; LED lifespan: L70B20; UGR: <19. Electrical characteristics - Rated power: 36 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,9; Operating temperature: -25°C / +40°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 3000 gr; Barcode single item: 8011905331290; Number of pieces multiple pack: 6; Minimum order quantity: 6; Minimum packaging: 6 / 6. Other Infotech - Flicker Free: Yes; Light source replaceability: Replaceable (LED only) light source by a professional; Control gear replaceability: Replaceable control gear by a professional.
