Typology

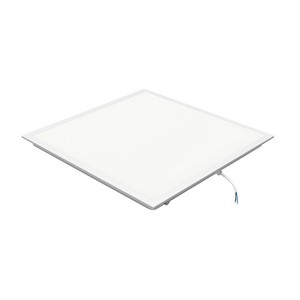

Direct lighting LED panel with rear dissipation panel (LP6060B1NEX).
Features
Panel equipped with a resin coated power supply providing an IP65 connection to both the panel and exposed wiring: may be used in installations that are exposed to particularly difficult environmental conditions without the need for precautions to protect the driver.
Equipped with a GORE-TEX® valve to compensate for pressure variations due to thermal changes and to prevent the formation of condensation in the fixture.
Installation
Consider more depth for recessed installations.
Material
Painted white aluminium body; PMMA screen.
Applications
Panel suitable for outdoor installations and in places such as bathrooms, kitchens, plant areas etc.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
40 kWh/1000h
Energy efficiency class
This product contains a light source of energy efficiency class "D"
Operating temperature
-25°C / +40°C
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905973810
Number of pieces multiple pack
6
Barcode multiple pack
8011905973827
Product sheet
Tender text
Extended
Compact
LP6060B1NEX - SLIMFLUX BL IP65 - PRO
Typology
Direct lighting LED panel with rear dissipation panel (LP6060B1NEX).
Features
Panel equipped with a resin coated power supply providing an IP65 connection to both the panel and exposed wiring: may be used in installations that are exposed to particularly difficult environmental conditions without the need for precautions to protect the driver.
Equipped with a GORE-TEX® valve to compensate for pressure variations due to thermal changes and to prevent the formation of condensation in the fixture.
Installation
Consider more depth for recessed installations.
Material
Painted white aluminium body; PMMA screen.
Applications
Panel suitable for outdoor installations and in places such as bathrooms, kitchens, plant areas etc.
Characteristic data
Power: 40 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
Base: Free Wire
IP: 65
Flux: 4000 lm
PF: 0,95
Tc: 4000 K
Ra: >80
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 595 mm
L1: 595 mm
H: 36 mm

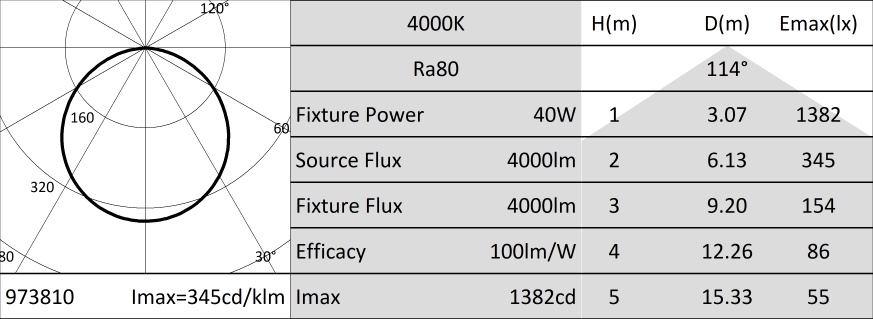

Lighting and photometric features
Beam opening: 120°
Flux: 4000 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 40 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,95
Weighted energy consumption: 40 kWh/1000h
Energy efficiency class: This product contains a light source of energy efficiency class "D"
Number of cycles: 100000
Operating temperature: -25°C / +40°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 1850 gr
Barcode single item: 8011905973810
Number of pieces multiple pack: 6
Barcode multiple pack: 8011905973827
Minimum order quantity: 1
Minimum packaging: 1 / 6
Other Infotech
Flicker Free: Yes
LP6060B1NEX - SLIMFLUX BL IP65 - PRO
Typology: Direct lighting LED panel with rear dissipation panel (LP6060B1NEX). Features: Panel equipped with a resin coated power supply providing an IP65 connection to both the panel and exposed wiring: may be used in installations that are exposed to particularly difficult environmental conditions without the need for precautions to protect the driver. Equipped with a GORE-TEX® valve to compensate for pressure variations due to thermal changes and to prevent the formation of condensation in the fixture. Installation: Consider more depth for recessed installations. Material: Painted white aluminium body; PMMA screen. Applications: Panel suitable for outdoor installations and in places such as bathrooms, kitchens, plant areas etc. Characteristic data - Power: 40 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; Base: Free Wire; IP: 65; Flux: 4000 lm; PF: 0,95; Tc: 4000 K; Ra: >80; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 595 mm; L1: 595 mm; H: 36 mm. Lighting and photometric features - Beam opening: 120°; Flux: 4000 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 40 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,95; Weighted energy consumption: 40 kWh/1000h; Energy efficiency class: This product contains a light source of energy efficiency class "D"; Number of cycles: 100000; Operating temperature: -25°C / +40°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 1850 gr; Barcode single item: 8011905973810; Number of pieces multiple pack: 6; Barcode multiple pack: 8011905973827; Minimum order quantity: 1; Minimum packaging: 1 / 6. Other Infotech - Flicker Free: Yes.
