Typology
Direct lighting LED panel.
Features
The positioning of the LED sources on a horizontal plate ensures lighting uniformity on the screen surface and excellent efficiency levels.
The backlit panel is composed of a metal material back compartment providing a heat sink function.
The LED sources positioned on a horizontal plate ensure lighting uniformity on the diffuser surface and ensure excellent efficiency levels.
Colour rendering: Ra>80.
Installation
Consider more depth for recessed installations.
Material
Painted white aluminium body; high-transmittance PMMA primary optics.
Usage information
SLIMFLUX 60x60 panels can be used with multi-current dimming power supply, code DELT40D-M.
Emergency
SLIMFLUX panels can be used with standby emergency kit, code KTEMR03.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +40°C

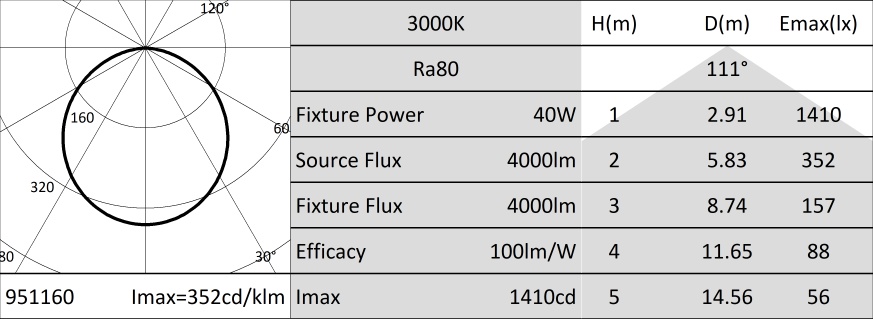

Photometry
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905951160
Number of pieces multiple pack
6
Barcode multiple pack
8011905951900
Product sheet
Tender text
Extended
Compact
LP6060B1-830 - SLIMFLUX BL - PRO
Typology
Direct lighting LED panel.
Features
The positioning of the LED sources on a horizontal plate ensures lighting uniformity on the screen surface and excellent efficiency levels.
The backlit panel is composed of a metal material back compartment providing a heat sink function.
The LED sources positioned on a horizontal plate ensure lighting uniformity on the diffuser surface and ensure excellent efficiency levels.
Colour rendering: Ra>80.
Installation
Consider more depth for recessed installations.
Material
Painted white aluminium body; high-transmittance PMMA primary optics.
Usage information
SLIMFLUX 60x60 panels can be used with multi-current dimming power supply, code DELT40D-M.
Emergency
SLIMFLUX panels can be used with standby emergency kit, code KTEMR03.
Characteristic data
Power: 40 W
Dimmable: No
Input: 220-240 Vac
Base: Screws
IP: 20
Flux: 4000 lm
PF: 0,9
Tc: 3000 K
Ra: >80
LED Warranty: G5h24
RG: RG0
Dimensional characteristics
Dimensiones
L: 595 mm
L1: 595 mm
H: 30 mm
Lighting and photometric features
Flux: 4000 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L80B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 40 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,9
Operating temperature: -25°C / +40°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 1700 gr
Barcode single item: 8011905951160
Number of pieces multiple pack: 6
Barcode multiple pack: 8011905951900
Minimum order quantity: 1
Other Infotech
Flicker Free: Yes
LP6060B1-830 - SLIMFLUX BL - PRO
Typology: Direct lighting LED panel. Features: The positioning of the LED sources on a horizontal plate ensures lighting uniformity on the screen surface and excellent efficiency levels. The backlit panel is composed of a metal material back compartment providing a heat sink function. The LED sources positioned on a horizontal plate ensure lighting uniformity on the diffuser surface and ensure excellent efficiency levels. Colour rendering: Ra>80. Installation: Consider more depth for recessed installations. Material: Painted white aluminium body; high-transmittance PMMA primary optics. Usage information: SLIMFLUX 60x60 panels can be used with multi-current dimming power supply, code DELT40D-M. Emergency: SLIMFLUX panels can be used with standby emergency kit, code KTEMR03. Characteristic data - Power: 40 W; Dimmable: No; Input: 220-240 Vac; Base: Screws; IP: 20; Flux: 4000 lm; PF: 0,9; Tc: 3000 K; Ra: >80; LED Warranty: G5h24; RG: RG0. Dimensional characteristics - Dimensiones; L: 595 mm; L1: 595 mm; H: 30 mm. Lighting and photometric features - Flux: 4000 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: >80; Lifespan: 50000 h; LED lifespan: L80B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 40 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,9; Operating temperature: -25°C / +40°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 1700 gr; Barcode single item: 8011905951160; Number of pieces multiple pack: 6; Barcode multiple pack: 8011905951900; Minimum order quantity: 1. Other Infotech - Flicker Free: Yes.
