Typology

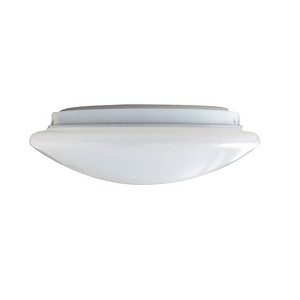

LED lamps with SMD technology in a fixture for ceiling or surface installations.
In the same range also the version with presence sensor.
Features
Excellent light diffusion across the entire surface.
Non removable built-in power supply.
Material
Metal body; satin effect plastic diffusor.
Applications
Typically used in stairwells, apartment and residential building entrances, waiting rooms and surgeries, etc.
Notes
Do not use with dimmers.
Connection to the mains with terminal block.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
30 kWh/1000h
Operating temperature
-25°C / +35°C

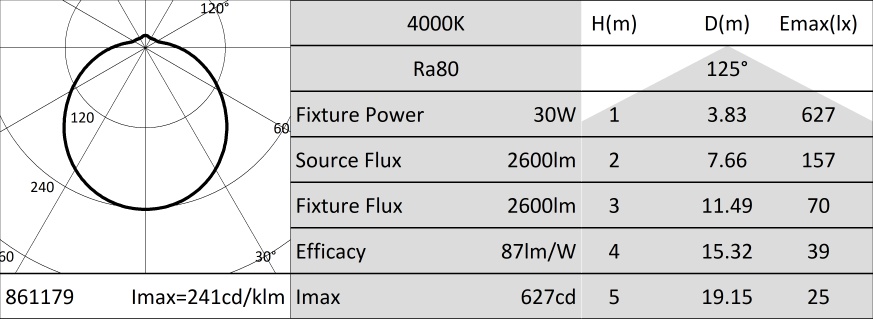

Photometry
Other Infotech
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905861179
Number of pieces multiple pack
5
Barcode multiple pack
8011905862336
Product sheet
Tender text
Extended
Compact
LC002 - PLAFO T2
Typology
LED lamps with SMD technology in a fixture for ceiling or surface installations.
In the same range also the version with presence sensor.
Features
Excellent light diffusion across the entire surface.
Non removable built-in power supply.
Material
Metal body; satin effect plastic diffusor.
Applications
Typically used in stairwells, apartment and residential building entrances, waiting rooms and surgeries, etc.
Notes
Do not use with dimmers.
Connection to the mains with terminal block.
Characteristic data
Power: 30 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
Base: Screws
IP: 40
Flux: 2600 lm
PF: 0,97
Tc: 4000 K
Ra: >80
LED Warranty: G3
Axis: 600 cd
RG: RG0

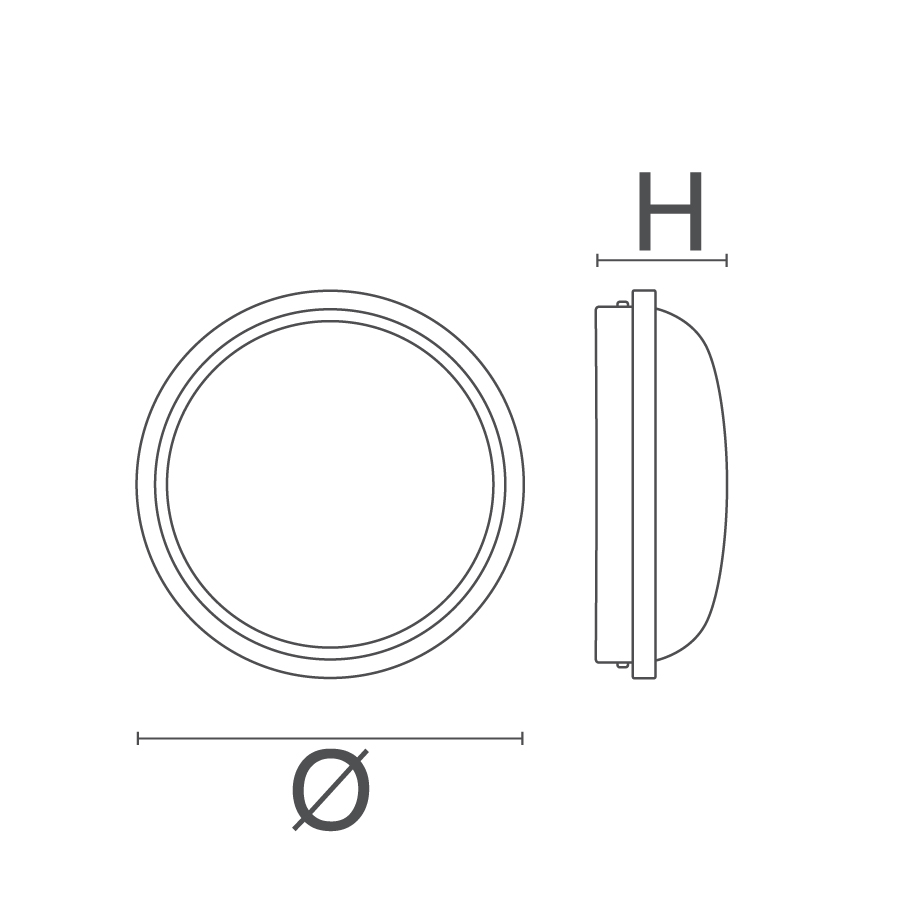

Dimensional characteristics
Dimensiones
ø: 400 mm
H: 120 mm
Lighting and photometric features
Beam opening: 120°
Flux: 2600 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 20000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 30 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,97
Weighted energy consumption: 30 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 750 gr
Barcode single item: 8011905861179
Number of pieces multiple pack: 5
Barcode multiple pack: 8011905862336
Minimum order quantity: 1
Minimum packaging: 1 / 5
Other Infotech
Reflector: Yes
LC002 - PLAFO T2
Typology: LED lamps with SMD technology in a fixture for ceiling or surface installations. In the same range also the version with presence sensor. Features: Excellent light diffusion across the entire surface. Non removable built-in power supply. Material: Metal body; satin effect plastic diffusor. Applications: Typically used in stairwells, apartment and residential building entrances, waiting rooms and surgeries, etc. Notes: Do not use with dimmers. Connection to the mains with terminal block. Characteristic data - Power: 30 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; Base: Screws; IP: 40; Flux: 2600 lm; PF: 0,97; Tc: 4000 K; Ra: >80; LED Warranty: G3; Axis: 600 cd; RG: RG0. Dimensional characteristics - Dimensiones; ø: 400 mm; H: 120 mm. Lighting and photometric features - Beam opening: 120°; Flux: 2600 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 20000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 30 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,97; Weighted energy consumption: 30 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 750 gr; Barcode single item: 8011905861179; Number of pieces multiple pack: 5; Barcode multiple pack: 8011905862336; Minimum order quantity: 1; Minimum packaging: 1 / 5. Other Infotech - Reflector: Yes.
