Typology
LED DR111.
Features
Reflector Effect: coverage of the light source makes these lamps similar to traditional halogen sources they are intended to replace.
Material
High reflectance metal reflector.
Base in termoresistent plastic material.
Lightness is an important feature of this product: ideal for use on any type of ceiling or fitting.
Applications
Professional directional lighting: ideal for use in shops and in areas where accent lighting is required.
Usage information
Do not use with dimmer.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
11 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
101

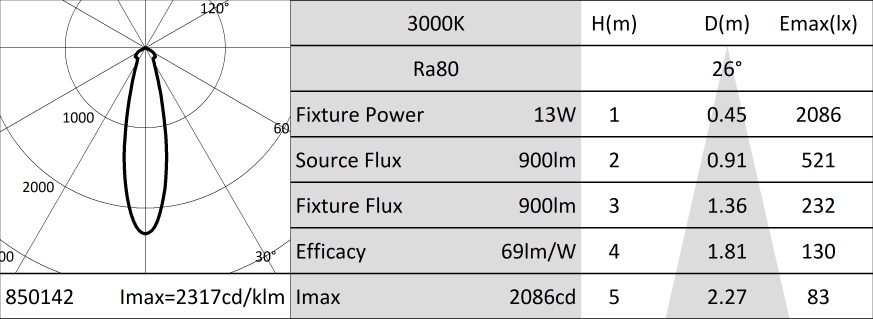

Photometry
Other Infotech
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905850142
Number of pieces multiple pack
10
Barcode multiple pack
8011905851132
Product sheet
Tender text
Extended
Compact
L8086W - DR111 - WF
Typology
LED DR111.
Features
Reflector Effect: coverage of the light source makes these lamps similar to traditional halogen sources they are intended to replace.
Material
High reflectance metal reflector.
Base in termoresistent plastic material.
Lightness is an important feature of this product: ideal for use on any type of ceiling or fitting.
Applications
Professional directional lighting: ideal for use in shops and in areas where accent lighting is required.
Usage information
Do not use with dimmer.
Characteristic data
Power: 11 W
Beam: 30°
Dimmable: No
Input: 220-240 Vac
Base: GU10
IP: 20
Flux: 1200 lm
PF: 0,70
Tc: 3000 K
Ra: 80
LED Warranty: G2
Axis: 1850 cd

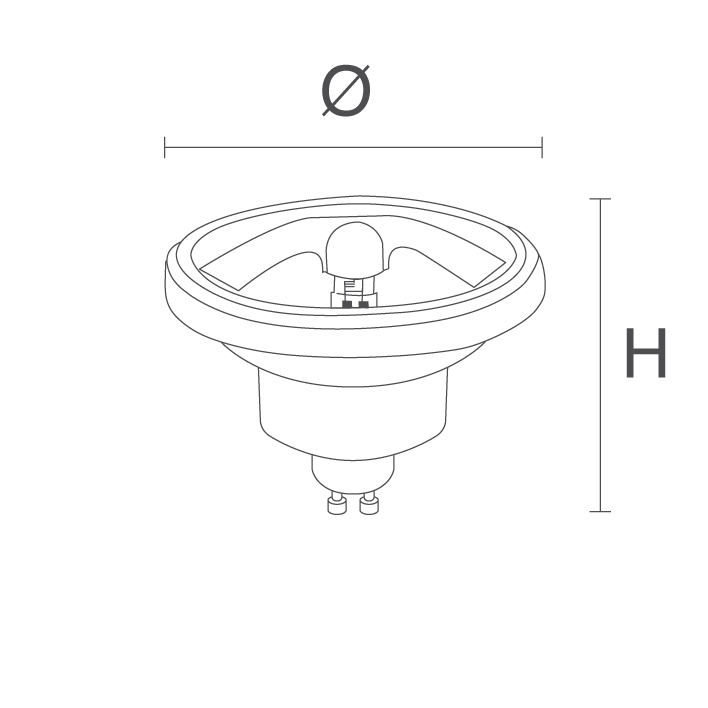

Dimensional characteristics
Dimensiones
ø: 111 mm
H: 65 mm
Lighting and photometric features
Beam opening: 30°
Flux: 1200 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: 80
Lifespan: 25000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 11 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,70
Weighted energy consumption: 11 kWh/1000h
Energy efficiency class: F
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 101
Operating position: 360°
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 118 gr
Barcode single item: 8011905850142
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905851132
Minimum order quantity: 5
Minimum packaging: 5 / 10
Other Infotech
Reflector: Yes
L8086W - DR111 - WF
Typology: LED DR111. Features: Reflector Effect: coverage of the light source makes these lamps similar to traditional halogen sources they are intended to replace. Material: High reflectance metal reflector. Base in termoresistent plastic material. Lightness is an important feature of this product: ideal for use on any type of ceiling or fitting. Applications: Professional directional lighting: ideal for use in shops and in areas where accent lighting is required. Usage information: Do not use with dimmer. Characteristic data - Power: 11 W; Beam: 30°; Dimmable: No; Input: 220-240 Vac; Base: GU10; IP: 20; Flux: 1200 lm; PF: 0,70; Tc: 3000 K; Ra: 80; LED Warranty: G2; Axis: 1850 cd. Dimensional characteristics - Dimensiones; ø: 111 mm; H: 65 mm. Lighting and photometric features - Beam opening: 30°; Flux: 1200 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: 80; Lifespan: 25000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 11 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,70; Weighted energy consumption: 11 kWh/1000h; Energy efficiency class: F; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 101; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 118 gr; Barcode single item: 8011905850142; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905851132; Minimum order quantity: 5; Minimum packaging: 5 / 10. Other Infotech - Reflector: Yes.
