Typology
LED DR111.
Features
The size of this lamp is exactly that of halogen lamps and therefore it can be easily used in the same appliances.
Material
High reflectance metal reflector.
Thermoresistant plastic base and optics.
Applications
Professional directional lighting: ideal for use in shops and in areas where accent lighting is required.
Usage information
Compatible with 12V AC output electromagnetic transformers and with drivers for LEDs with constant current drivers.
Do not use this item with electronic transformers for halogen lamps.
Do not use with dimmer.
Can be used with Duralamp's drivers for LED: maximum load should not exceed 55% of the rated power of the transformer.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
12 kWh/1000h
Operating temperature
-25°C / +35°C
Other Infotech
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62838:2016 (+EC:2018)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI 34-141:2014
Logistics data
Barcode single item
8011905003593
Number of pieces multiple pack
10
Product sheet
Tender text
Extended
Compact
L8073W - DR111 - SF
Typology
LED DR111.
Features
The size of this lamp is exactly that of halogen lamps and therefore it can be easily used in the same appliances.
Material
High reflectance metal reflector.
Thermoresistant plastic base and optics.
Applications
Professional directional lighting: ideal for use in shops and in areas where accent lighting is required.
Usage information
Compatible with 12V AC output electromagnetic transformers and with drivers for LEDs with constant current drivers.
Do not use this item with electronic transformers for halogen lamps.
Do not use with dimmer.
Can be used with Duralamp's drivers for LED: maximum load should not exceed 55% of the rated power of the transformer.
Characteristic data
Power: 12 W
Beam: 30°
Dimmable: No
Input: 12 Vdc
Base: G53
IP: 20
PF: 0,70
Tc: 3000 K
Ra: >80
LED Warranty: G2
Axis: 1600 cd

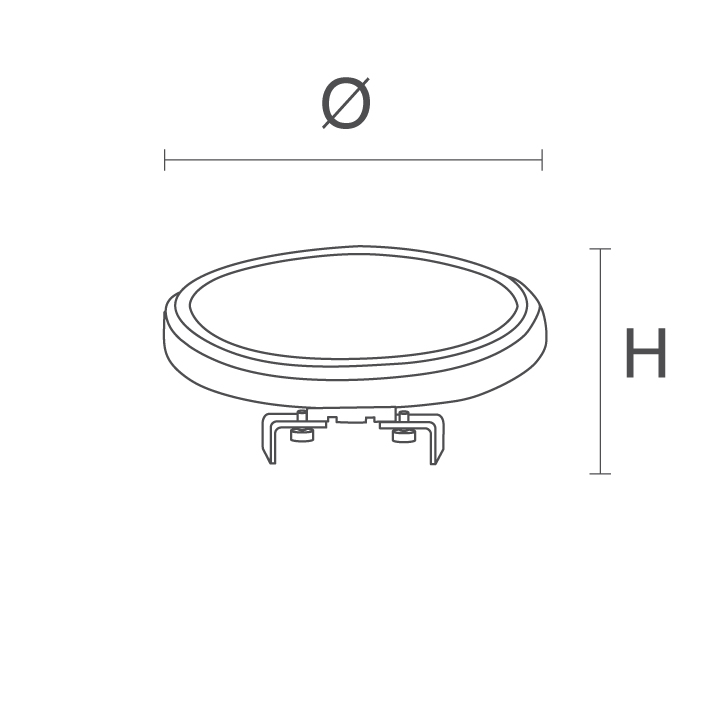

Dimensional characteristics
Dimensiones
ø: 111 mm
H: 66 mm
Lighting and photometric features
Beam opening: 30°
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: >80
Lifespan: 25000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 12 W
Input voltage: 12 Vdc
Dimmable: No
Power factor (PF): 0,70
Input current: 1.81 A
Weighted energy consumption: 12 kWh/1000h
Energy efficiency class: F
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 62838:2016 (+EC:2018)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI 34-141:2014
Logistics data
Item net weight: 118 gr
Barcode single item: 8011905003593
Number of pieces multiple pack: 10
Minimum order quantity: 10
Minimum packaging: 10 / 10
Other Infotech
Reflector: Yes
L8073W - DR111 - SF
Typology: LED DR111. Features: The size of this lamp is exactly that of halogen lamps and therefore it can be easily used in the same appliances. Material: High reflectance metal reflector. Thermoresistant plastic base and optics. Applications: Professional directional lighting: ideal for use in shops and in areas where accent lighting is required. Usage information: Compatible with 12V AC output electromagnetic transformers and with drivers for LEDs with constant current drivers. Do not use this item with electronic transformers for halogen lamps. Do not use with dimmer. Can be used with Duralamp's drivers for LED: maximum load should not exceed 55% of the rated power of the transformer. Characteristic data - Power: 12 W; Beam: 30°; Dimmable: No; Input: 12 Vdc; Base: G53; IP: 20; PF: 0,70; Tc: 3000 K; Ra: >80; LED Warranty: G2; Axis: 1600 cd. Dimensional characteristics - Dimensiones; ø: 111 mm; H: 66 mm. Lighting and photometric features - Beam opening: 30°; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: >80; Lifespan: 25000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 12 W; Input voltage: 12 Vdc; Dimmable: No; Power factor (PF): 0,70; Input current: 1.81 A; Weighted energy consumption: 12 kWh/1000h; Energy efficiency class: F; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 62838:2016 (+EC:2018); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI 34-141:2014. Logistics data - Item net weight: 118 gr; Barcode single item: 8011905003593; Number of pieces multiple pack: 10; Minimum order quantity: 10; Minimum packaging: 10 / 10. Other Infotech - Reflector: Yes.
