Typology
G9 lamps working at mains.
Features
Direct replacement of G9 halogen lamps.
Pleasant decorative design, suitable also in fittings where the lamp is visible.
Extremely small size: suitable for use in very small fittings, suspensions or many arms chandeliers.
Notes
Do not use with dimmer.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
2700 K
Colour of the light
Warm light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
7 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
51
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905862466
Number of pieces multiple pack
10
Barcode multiple pack
8011905863487
Product sheet
Tender text
Extended
Compact

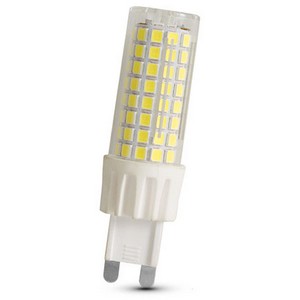

L7118 - DECO LED G9
Typology
G9 lamps working at mains.
Features
Direct replacement of G9 halogen lamps.
Pleasant decorative design, suitable also in fittings where the lamp is visible.
Extremely small size: suitable for use in very small fittings, suspensions or many arms chandeliers.
Notes
Do not use with dimmer.
Characteristic data
Power: 7 W
Beam: 270°
Dimmable: No
Input: 220-240 Vac
Base: G9
IP: 20
Flux: 650 lm
PF: 0,53
Tc: 2700 K
Ra: >80
LED Warranty: G2
Dimensional characteristics
Dimensiones
ø: 21 mm
H: 71 mm
Lighting and photometric features
Beam opening: 270°
Flux: 650 lm
CCT nominal colour temperature: 2700 K
Colour of the light: Warm light
Colour rendering index: >80
Lifespan: 15000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 7 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,53
Input current: 0.05 A
Weighted energy consumption: 7 kWh/1000h
Energy efficiency class: F
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 51
Operating position: 360°
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 30 gr
Barcode single item: 8011905862466
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905863487
Minimum order quantity: 10
Minimum packaging: 10 / 10
L7118 - DECO LED G9
Typology: G9 lamps working at mains. Features: Direct replacement of G9 halogen lamps. Pleasant decorative design, suitable also in fittings where the lamp is visible. Extremely small size: suitable for use in very small fittings, suspensions or many arms chandeliers. Notes: Do not use with dimmer. Characteristic data - Power: 7 W; Beam: 270°; Dimmable: No; Input: 220-240 Vac; Base: G9; IP: 20; Flux: 650 lm; PF: 0,53; Tc: 2700 K; Ra: >80; LED Warranty: G2. Dimensional characteristics - Dimensiones; ø: 21 mm; H: 71 mm. Lighting and photometric features - Beam opening: 270°; Flux: 650 lm; CCT nominal colour temperature: 2700 K; Colour of the light: Warm light; Colour rendering index: >80; Lifespan: 15000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 7 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,53; Input current: 0.05 A; Weighted energy consumption: 7 kWh/1000h; Energy efficiency class: F; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 51; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 30 gr; Barcode single item: 8011905862466; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905863487; Minimum order quantity: 10; Minimum packaging: 10 / 10.
