Typology
LED lamp with SMD technology and the same shape as the Reflector R39, R50, R63, R80 and R90.
Features
Immediate replacement of incandescent decorative lamps: warm light ideal for residential and hospitality environments.
Material
Shock-resistant thermoconductive material.
Notes
Do not use with dimmers.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
2700 K
Colour of the light
Warm light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C

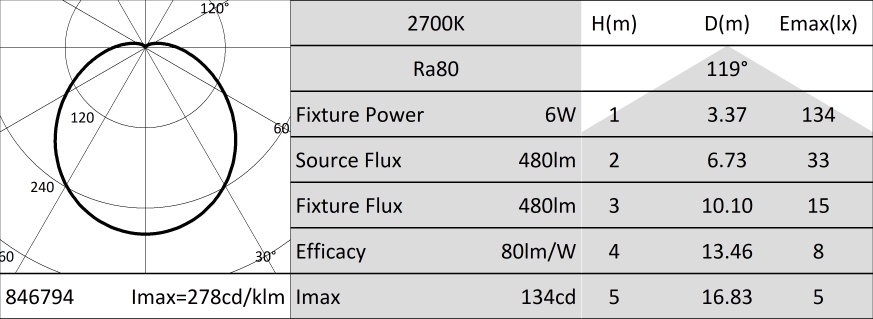

Photometry
Other Infotech
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905846794
Number of pieces multiple pack
10
Barcode multiple pack
8011905846800
Product sheet
Tender text
Extended
Compact

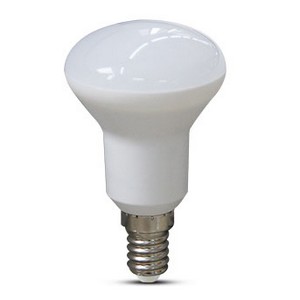

L645WB - REFLECT-LED
Typology
LED lamp with SMD technology and the same shape as the Reflector R39, R50, R63, R80 and R90.
Features
Immediate replacement of incandescent decorative lamps: warm light ideal for residential and hospitality environments.
Material
Shock-resistant thermoconductive material.
Notes
Do not use with dimmers.
Characteristic data
Power: 6 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
Base: E14
IP: 20
Flux: 500 lm
PF: 0,55
Tc: 2700 K
Ra: >80
LED Warranty: G2
Axis: 140 cd
Dimensional characteristics
Dimensiones
ø: 50 mm
H: 86 mm
Lighting and photometric features
Beam opening: 120°
Flux: 500 lm
CCT nominal colour temperature: 2700 K
Colour of the light: Warm light
Colour rendering index: >80
Lifespan: 15000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 6 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,55
Input current: 0.047 A
Energy efficiency class: G
Number of cycles: 1000000
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 40 gr
Barcode single item: 8011905846794
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905846800
Minimum order quantity: 10
Minimum packaging: 10 / 10
Other Infotech
Reflector: Yes
L645WB - REFLECT-LED
Typology: LED lamp with SMD technology and the same shape as the Reflector R39, R50, R63, R80 and R90. Features: Immediate replacement of incandescent decorative lamps: warm light ideal for residential and hospitality environments. Material: Shock-resistant thermoconductive material. Notes: Do not use with dimmers. Characteristic data - Power: 6 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; Base: E14; IP: 20; Flux: 500 lm; PF: 0,55; Tc: 2700 K; Ra: >80; LED Warranty: G2; Axis: 140 cd. Dimensional characteristics - Dimensiones; ø: 50 mm; H: 86 mm. Lighting and photometric features - Beam opening: 120°; Flux: 500 lm; CCT nominal colour temperature: 2700 K; Colour of the light: Warm light; Colour rendering index: >80; Lifespan: 15000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 6 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,55; Input current: 0.047 A; Energy efficiency class: G; Number of cycles: 1000000; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 40 gr; Barcode single item: 8011905846794; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905846800; Minimum order quantity: 10; Minimum packaging: 10 / 10. Other Infotech - Reflector: Yes.
Eulumdat
