Typology
Range of high power LED lamps with SMD technology and high efficiency chip.
Features
Flux up to 8600 lumes to replace also discharge lamps.
Installation
Suitable for outdoor use inside suitable fixtures.
Material
Metal body and heat sink for excellent thermal management; opal diffuser for antiglare effect.
Usage information
In order to replace discharge lamps with Deco Led High Power: make sure the fitting is suitable for direct feeding from the mains.
Notes
Do not use with dimmer.
In case of installation in public areas, it is advisable to use overvoltage surge protection.
The HP2 models are designed to withstand voltage peaks up to 6KV.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
6400 K
Colour of the light
Cool light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
50 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
382

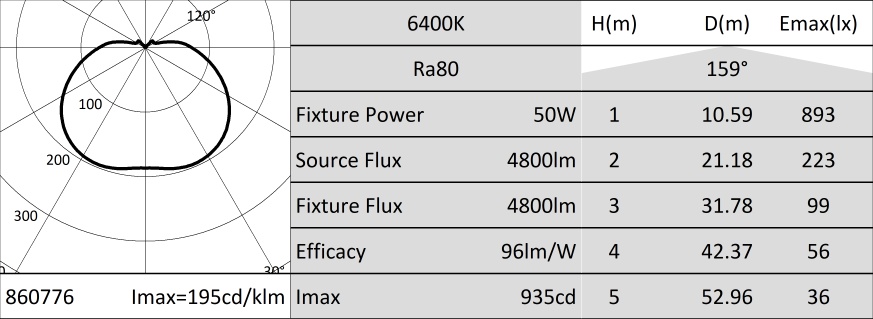

Photometry
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905860776
Number of pieces multiple pack
10
Barcode multiple pack
8011905861735
Product sheet
Tender text
Extended
Compact

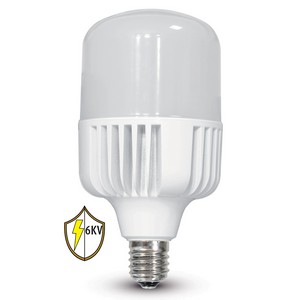

L5064HP2 - DECO LED HIGH POWER HP2
Typology
Range of high power LED lamps with SMD technology and high efficiency chip.
Features
Flux up to 8600 lumes to replace also discharge lamps.
Installation
Suitable for outdoor use inside suitable fixtures.
Material
Metal body and heat sink for excellent thermal management; opal diffuser for antiglare effect.
Usage information
In order to replace discharge lamps with Deco Led High Power: make sure the fitting is suitable for direct feeding from the mains.
Notes
Do not use with dimmer.
In case of installation in public areas, it is advisable to use overvoltage surge protection.
The HP2 models are designed to withstand voltage peaks up to 6KV.
Characteristic data
Power: 50 W
Beam: 200°
Dimmable: No
Input: 220-240 Vac
Base: E40
IP: 20
Flux: 7100 lm
PF: 0,97
Tc: 6400 K
Ra: >80
LED Warranty: G2
Dimensional characteristics
Dimensiones
ø: 120 mm
H: 225 mm
Lighting and photometric features
Beam opening: 200°
Flux: 7100 lm
CCT nominal colour temperature: 6400 K
Colour of the light: Cool light
Colour rendering index: >80
Lifespan: 25000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 50 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,97
Input current: 0.22 A
Weighted energy consumption: 50 kWh/1000h
Energy efficiency class: D
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 382
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 460 gr
Barcode single item: 8011905860776
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905861735
Minimum order quantity: 1
Minimum packaging: 1 / 10
L5064HP2 - DECO LED HIGH POWER HP2
Typology: Range of high power LED lamps with SMD technology and high efficiency chip. Features: Flux up to 8600 lumes to replace also discharge lamps. Installation: Suitable for outdoor use inside suitable fixtures. Material: Metal body and heat sink for excellent thermal management; opal diffuser for antiglare effect. Usage information: In order to replace discharge lamps with Deco Led High Power: make sure the fitting is suitable for direct feeding from the mains. Notes: Do not use with dimmer. In case of installation in public areas, it is advisable to use overvoltage surge protection. The HP2 models are designed to withstand voltage peaks up to 6KV. Characteristic data - Power: 50 W; Beam: 200°; Dimmable: No; Input: 220-240 Vac; Base: E40; IP: 20; Flux: 7100 lm; PF: 0,97; Tc: 6400 K; Ra: >80; LED Warranty: G2. Dimensional characteristics - Dimensiones; ø: 120 mm; H: 225 mm. Lighting and photometric features - Beam opening: 200°; Flux: 7100 lm; CCT nominal colour temperature: 6400 K; Colour of the light: Cool light; Colour rendering index: >80; Lifespan: 25000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 50 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,97; Input current: 0.22 A; Weighted energy consumption: 50 kWh/1000h; Energy efficiency class: D; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 382. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 460 gr; Barcode single item: 8011905860776; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905861735; Minimum order quantity: 1; Minimum packaging: 1 / 10.
