Typology
T8 LED tubes for special applications.
Features
Produced with calibrated spectra to improve visual perception of goods in different product sectors.
Material
White glass body, plastic caps.
Applications
The retail food, baked goods and hospitality industries.
Usage information
Do not use with dimmer.
In case fluorescent tubes must be replaced, follow the simple assembly instructions indicated.
See instructions on the website.
Do not use in in-series installations.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
8000 K
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
20 kWh/1000h
Operating temperature
-25°C / +35°C

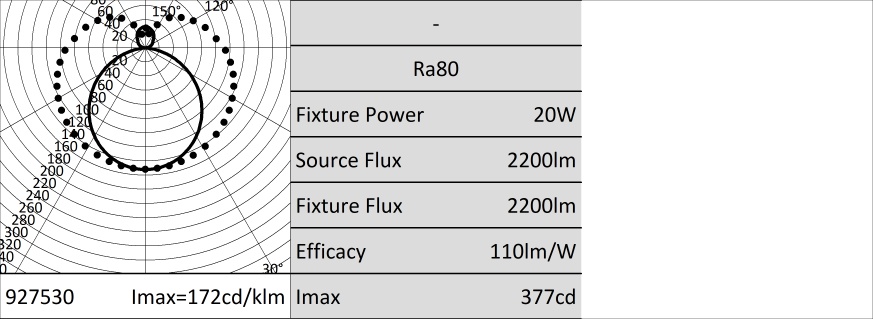

Photometry
LED Warranty
G4h24
Full Guarantee
4 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI EN 62776:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905927530
Number of pieces multiple pack
25
Barcode multiple pack
8011905932596
Product sheet
Tender text
Extended
Compact
L368WE - TUBOLED FOOD
Typology
T8 LED tubes for special applications.
Features
Produced with calibrated spectra to improve visual perception of goods in different product sectors.
Material
White glass body, plastic caps.
Applications
The retail food, baked goods and hospitality industries.
Usage information
Do not use with dimmer.
In case fluorescent tubes must be replaced, follow the simple assembly instructions indicated.
See instructions on the website.
Do not use in in-series installations.
Characteristic data
Power: 20 W
Beam: 280°
Dimmable: No
Input: 220-240 Vac
Base: G13
IP: 20
Flux: 2200 lm
PF: 0,91
Tc: 8000 K
Ra: >80
LED Warranty: G4h24
Dimensional characteristics
Dimensiones
L: 1212 mm
ø: 29 mm
Lighting and photometric features
Beam opening: 280°
Flux: 2200 lm
CCT nominal colour temperature: 8000 K
Colour rendering index: >80
Lifespan: 40000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 20 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,91
Input current: 0.1 A
Weighted energy consumption: 20 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G4h24: Full Guarantee
4 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI EN 62776:2015
CEI 34-141:2014
Logistics data
Item net weight: 170 gr
Barcode single item: 8011905927530
Number of pieces multiple pack: 25
Barcode multiple pack: 8011905932596
Minimum order quantity: 25
Minimum packaging: 25 / 25
L368WE - TUBOLED FOOD
Typology: T8 LED tubes for special applications. Features: Produced with calibrated spectra to improve visual perception of goods in different product sectors. Material: White glass body, plastic caps. Applications: The retail food, baked goods and hospitality industries. Usage information: Do not use with dimmer. In case fluorescent tubes must be replaced, follow the simple assembly instructions indicated. See instructions on the website. Do not use in in-series installations. Characteristic data - Power: 20 W; Beam: 280°; Dimmable: No; Input: 220-240 Vac; Base: G13; IP: 20; Flux: 2200 lm; PF: 0,91; Tc: 8000 K; Ra: >80; LED Warranty: G4h24. Dimensional characteristics - Dimensiones; L: 1212 mm; ø: 29 mm. Lighting and photometric features - Beam opening: 280°; Flux: 2200 lm; CCT nominal colour temperature: 8000 K; Colour rendering index: >80; Lifespan: 40000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 20 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,91; Input current: 0.1 A; Weighted energy consumption: 20 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G4h24: Full Guarantee ; 4 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI EN 62776:2015; CEI 34-141:2014. Logistics data - Item net weight: 170 gr; Barcode single item: 8011905927530; Number of pieces multiple pack: 25; Barcode multiple pack: 8011905932596; Minimum order quantity: 25; Minimum packaging: 25 / 25.
