Typology
T8 LED tubes with high efficiency and 50,000h lifetime.
Features
Replacing 18W, 36W and 58W T8 tubes: high energy saving.
Immediate switch on, no flickering or buzzes.
Great flux maintenance.
Great light uniformity and distribution.
PF: 0.9.
Efficiency: up to 140 lm/W.
Material
White glass body, plastic caps.
Applications
Laboratories, production areas, garages, service corridors, commercial installations.
Usage information
Do not use with dimmer.
In case fluorescent tubes must be replaced, follow the simple assembly instructions indicated.
See instructions on the website.
Do not use in in-series installations.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
10 kWh/1000h
Operating temperature
-25°C / +35°C

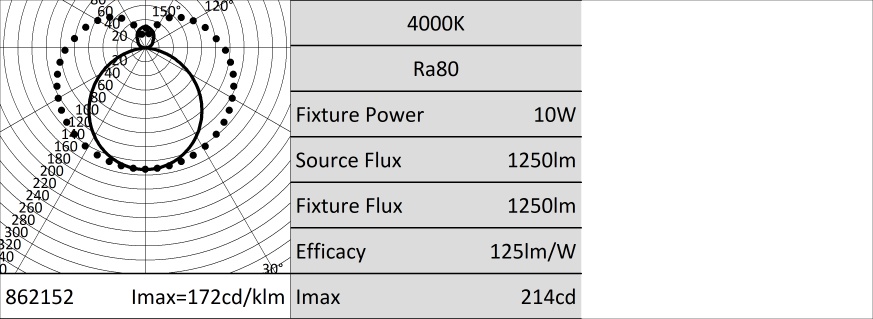

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI EN 62776:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905862152
Number of pieces multiple pack
10
Barcode multiple pack
8011905862169
Product sheet
Tender text
Extended
Compact
L18840LL6 - TUBOLED GLASS LL6 50.000 h
Typology
T8 LED tubes with high efficiency and 50,000h lifetime.
Features
Replacing 18W, 36W and 58W T8 tubes: high energy saving.
Immediate switch on, no flickering or buzzes.
Great flux maintenance.
Great light uniformity and distribution.
PF: 0.9.
Efficiency: up to 140 lm/W.
Material
White glass body, plastic caps.
Applications
Laboratories, production areas, garages, service corridors, commercial installations.
Usage information
Do not use with dimmer.
In case fluorescent tubes must be replaced, follow the simple assembly instructions indicated.
See instructions on the website.
Do not use in in-series installations.
Characteristic data
Power: 10 W
Beam: 300°
Dimmable: No
Input: 220-240 Vac
Base: G13
IP: 20
Flux: 1250 lm
PF: 0.9
Tc: 4000 K
Ra: >80
LED Warranty: G5h24
Dimensional characteristics
Dimensiones
L: 600 mm
ø: 28 mm
Lighting and photometric features
Beam opening: 300°
Flux: 1250 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 50000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 10 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0.9
Input current: 0.049 A
Weighted energy consumption: 10 kWh/1000h
Energy efficiency class: E
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI EN 62776:2015
CEI 34-141:2014
Logistics data
Item net weight: 110 gr
Barcode single item: 8011905862152
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905862169
Minimum order quantity: 10
Minimum packaging: 10 / 10
L18840LL6 - TUBOLED GLASS LL6 50.000 h
Typology: T8 LED tubes with high efficiency and 50,000h lifetime. Features: Replacing 18W, 36W and 58W T8 tubes: high energy saving. Immediate switch on, no flickering or buzzes. Great flux maintenance. Great light uniformity and distribution. PF: 0.9. Efficiency: up to 140 lm/W. Material: White glass body, plastic caps. Applications: Laboratories, production areas, garages, service corridors, commercial installations. Usage information: Do not use with dimmer. In case fluorescent tubes must be replaced, follow the simple assembly instructions indicated. See instructions on the website. Do not use in in-series installations. Characteristic data - Power: 10 W; Beam: 300°; Dimmable: No; Input: 220-240 Vac; Base: G13; IP: 20; Flux: 1250 lm; PF: 0.9; Tc: 4000 K; Ra: >80; LED Warranty: G5h24. Dimensional characteristics - Dimensiones; L: 600 mm; ø: 28 mm. Lighting and photometric features - Beam opening: 300°; Flux: 1250 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 50000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 10 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0.9; Input current: 0.049 A; Weighted energy consumption: 10 kWh/1000h; Energy efficiency class: E; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI EN 62776:2015; CEI 34-141:2014. Logistics data - Item net weight: 110 gr; Barcode single item: 8011905862152; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905862169; Minimum order quantity: 10; Minimum packaging: 10 / 10.
