Typology

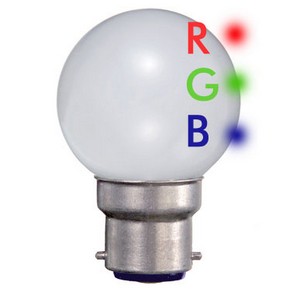

Range of LED lamps with SMD technology and color bulb.
Features
Classic shapes for immediate retro-fit of incandescent lamps in any decorative applications and festoons.
The RGB version features a fading color loop, for pleasant coloring effects.
Material
Impact-resistant globe, extremely resistant: these lamps can "bounce" if they fall on the floor.
Applications
For indoor or outdoor use inside duly protected fittings or Catenaria.
Notes
Do not use with dimmer.
Characteristic data
Dimensional characteristics
ø
45 mm
H
69 mm
H Tolerance
± 3 mm
Lighting and photometric features
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905836757
Number of pieces multiple pack
10
Barcode multiple pack
8011905782030
Product sheet
Tender text
Extended
Compact
L140PRGB-B22 - PING BALL
Typology
Range of LED lamps with SMD technology and color bulb.
Features
Classic shapes for immediate retro-fit of incandescent lamps in any decorative applications and festoons.
The RGB version features a fading color loop, for pleasant coloring effects.
Material
Impact-resistant globe, extremely resistant: these lamps can "bounce" if they fall on the floor.
Applications
For indoor or outdoor use inside duly protected fittings or Catenaria.
Notes
Do not use with dimmer.
Characteristic data
Power: 0.5 W
Beam: 320°
Dimmable: No
Input: 220-240 Vac
Base: B22
IP: 20
PF: 0,11
LED Warranty: G2
Dimensional characteristics
Dimensiones
ø: 45 mm
H: 69 mm
H Tolerance: ± 3 mm
Lighting and photometric features
Beam opening: 320°
Colour of the light: RGB
Lifespan: 25000 h
LED lifespan: L70B50
Mercury: 0 mg
Electrical characteristics
Rated power: 0.5 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,11
Input current: 0.15 A
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 20 gr
Barcode single item: 8011905836757
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905782030
Minimum order quantity: 10
Minimum packaging: 10 / 10
L140PRGB-B22 - PING BALL
Typology: Range of LED lamps with SMD technology and color bulb. Features: Classic shapes for immediate retro-fit of incandescent lamps in any decorative applications and festoons. The RGB version features a fading color loop, for pleasant coloring effects. Material: Impact-resistant globe, extremely resistant: these lamps can "bounce" if they fall on the floor. Applications: For indoor or outdoor use inside duly protected fittings or Catenaria. Notes: Do not use with dimmer. Characteristic data - Power: 0.5 W; Beam: 320°; Dimmable: No; Input: 220-240 Vac; Base: B22; IP: 20; PF: 0,11; LED Warranty: G2. Dimensional characteristics - Dimensiones; ø: 45 mm; H: 69 mm; H Tolerance: ± 3 mm. Lighting and photometric features - Beam opening: 320°; Colour of the light: RGB; Lifespan: 25000 h; LED lifespan: L70B50; Mercury: 0 mg. Electrical characteristics - Rated power: 0.5 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,11; Input current: 0.15 A; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 20 gr; Barcode single item: 8011905836757; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905782030; Minimum order quantity: 10; Minimum packaging: 10 / 10.
