Typology
Suspended luminaire for installation in large commercial and industrial spaces; uses highly efficient SMD technology.
Available in 3 sizes and 4 wattages.
Polycarbonate or aluminium reflector available with accessory code.
Features
The optical unit is integrated into the aluminium body for perfect heat dissipation.
Equipped with 4kV voltage surge protection.
Arrangement for remote-controlled sensor, see accessory codes.
Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection.
Installation
Equipped with a mounting ring for suspension installation.
For surface mounting, order bracket accessory code.
Material
Grooved die-cast aluminium for heat dissipation.
Suitable for use in dusty and humid environments due to its high IP rating.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Electrical characteristics
Weighted energy consumption
170 kWh/1000h
Energy efficiency class
This product contains a light source of energy efficiency class "B"
Operating temperature
-25°C / +35°C
Photometry
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905015008
Product sheet
Tender text
Extended
Compact

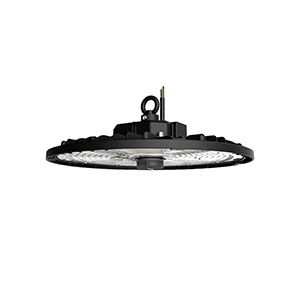

HB5-3227-STN - HB5 - HIGH BAY
Typology
Suspended luminaire for installation in large commercial and industrial spaces; uses highly efficient SMD technology.
Available in 3 sizes and 4 wattages.
Polycarbonate or aluminium reflector available with accessory code.
Features
The optical unit is integrated into the aluminium body for perfect heat dissipation.
Equipped with 4kV voltage surge protection.
Arrangement for remote-controlled sensor, see accessory codes.
Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection.
Installation
Equipped with a mounting ring for suspension installation.
For surface mounting, order bracket accessory code.
Material
Grooved die-cast aluminium for heat dissipation.
Suitable for use in dusty and humid environments due to its high IP rating.
Characteristic data
Power: 170 W
Beam: 90°
Dimmable: No
Input: 220-240 Vac
Base: Wire
IP: 65
Flux: 27000 lm
PF: 0.9
Tc: 4000 K
Ra: 80
LED Warranty: G5h24
Axis: 13700 cd
IK: IK08
RG: RG1
Dimensional characteristics
Dimensiones
ø: 320 mm
H: 84 mm
H2: 120 mm
Lighting and photometric features
Beam opening: 90°
Flux: 27000 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: 80
Lifespan: 100000 h
LED lifespan: L70B50
Electrical characteristics
Rated power: 170 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0.9
Weighted energy consumption: 170 kWh/1000h
Energy efficiency class: This product contains a light source of energy efficiency class "B"
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 2000 gr
Barcode single item: 8011905015008
Minimum order quantity: 1
Minimum packaging: 1 / 1
Other Infotech
Flicker Free: Yes
HB5-3227-STN - HB5 - HIGH BAY
Typology: Suspended luminaire for installation in large commercial and industrial spaces; uses highly efficient SMD technology. Available in 3 sizes and 4 wattages. Polycarbonate or aluminium reflector available with accessory code. Features: The optical unit is integrated into the aluminium body for perfect heat dissipation. Equipped with 4kV voltage surge protection. Arrangement for remote-controlled sensor, see accessory codes. Via the remote control it is possible to switch the luminaire on and off, dim and select the lighting mode with motion detection or room brightness detection. Installation: Equipped with a mounting ring for suspension installation. For surface mounting, order bracket accessory code. Material: Grooved die-cast aluminium for heat dissipation. Suitable for use in dusty and humid environments due to its high IP rating. Characteristic data - Power: 170 W; Beam: 90°; Dimmable: No; Input: 220-240 Vac; Base: Wire; IP: 65; Flux: 27000 lm; PF: 0.9; Tc: 4000 K; Ra: 80; LED Warranty: G5h24; Axis: 13700 cd; IK: IK08; RG: RG1. Dimensional characteristics - Dimensiones; ø: 320 mm; H: 84 mm; H2: 120 mm. Lighting and photometric features - Beam opening: 90°; Flux: 27000 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: 80; Lifespan: 100000 h; LED lifespan: L70B50. Electrical characteristics - Rated power: 170 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0.9; Weighted energy consumption: 170 kWh/1000h; Energy efficiency class: This product contains a light source of energy efficiency class "B"; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 2000 gr; Barcode single item: 8011905015008; Minimum order quantity: 1; Minimum packaging: 1 / 1. Other Infotech - Flicker Free: Yes.

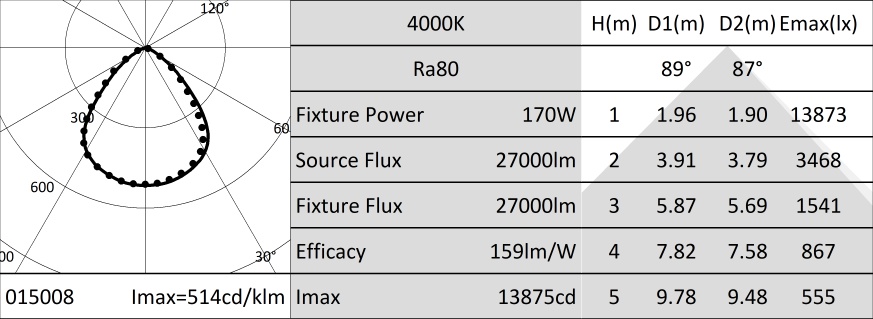

Picture 2
Picture 3
