Typology
LED source with SMD technology and high efficiency chip integrated into a recessed luminaire.
Features
Soft satin effect polycarbonate anti-glare diffuser.
Flicker Free.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to the mains with terminal block.
Material
Thermally conductive body; extremely light and manageable.
Power supply
Integrated driver.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C

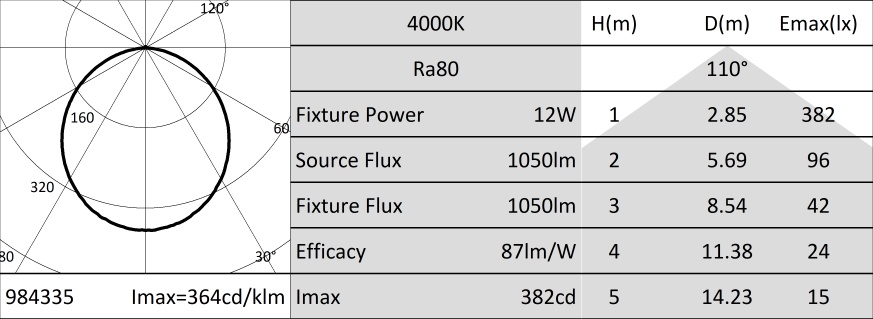

Photometry
Other Infotech
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905984335
Number of pieces multiple pack
20
Barcode multiple pack
8011905985844
Product sheet
Tender text
Extended
Compact
DT40L140 - LESELI SC
Typology
LED source with SMD technology and high efficiency chip integrated into a recessed luminaire.
Features
Soft satin effect polycarbonate anti-glare diffuser.
Flicker Free.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to the mains with terminal block.
Material
Thermally conductive body; extremely light and manageable.
Power supply
Integrated driver.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Power: 12 W
Beam: 110°
Dimmable: No
Input: 220-240 Vac
IP: 20
Optical compartment IP: 43
Flux: 1050 lm
PF: 0.9
Tc: 4000 K
Ra: 80
LED Warranty: G3
Axis: 365 cd
RG: RG0
Dimensional characteristics
Dimensiones
ø: 166 mm
H: 54 mm
Paso de corte
Cutting hole: 150
Lighting and photometric features
Beam opening: 110°
Flux: 1050 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: 80
Lifespan: 25000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 12 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0.9
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 96 gr
Barcode single item: 8011905984335
Number of pieces multiple pack: 20
Barcode multiple pack: 8011905985844
Minimum order quantity: 1
Minimum packaging: 1 / 20
Other Infotech
Flicker Free: Yes
DT40L140 - LESELI SC
Typology: LED source with SMD technology and high efficiency chip integrated into a recessed luminaire. Features: Soft satin effect polycarbonate anti-glare diffuser. Flicker Free. Installation: Complete with springs for easy fastening into false ceilings. Connection to the mains with terminal block. Material: Thermally conductive body; extremely light and manageable. Power supply: Integrated driver. Notes: Providing greater visual comfort, improved definition of detail and reduction of stress. Characteristic data - Power: 12 W; Beam: 110°; Dimmable: No; Input: 220-240 Vac; IP: 20; Optical compartment IP: 43; Flux: 1050 lm; PF: 0.9; Tc: 4000 K; Ra: 80; LED Warranty: G3; Axis: 365 cd; RG: RG0. Dimensional characteristics - Dimensiones; ø: 166 mm; H: 54 mm; Paso de corte; Cutting hole: 150. Lighting and photometric features - Beam opening: 110°; Flux: 1050 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: 80; Lifespan: 25000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 12 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0.9; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 96 gr; Barcode single item: 8011905984335; Number of pieces multiple pack: 20; Barcode multiple pack: 8011905985844; Minimum order quantity: 1; Minimum packaging: 1 / 20. Other Infotech - Flicker Free: Yes.
