Typology
LED source with SMD technology and high efficiency chip integrated into a recessed luminaire.
Features

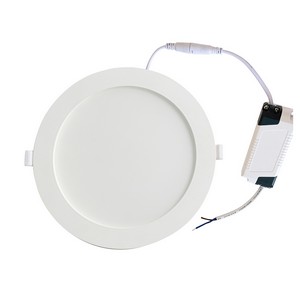

Downlights with extremely limited width and remote driver.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to mains with free wires.
Material
High dissipation die-cast aluminum body with anti-yellowing PC screen.
White ring.
Notes
Luminaire is Non-Dimming.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
6000 K
Colour of the light
Cool light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
18 kWh/1000h
Operating temperature
-25°C / +35°C

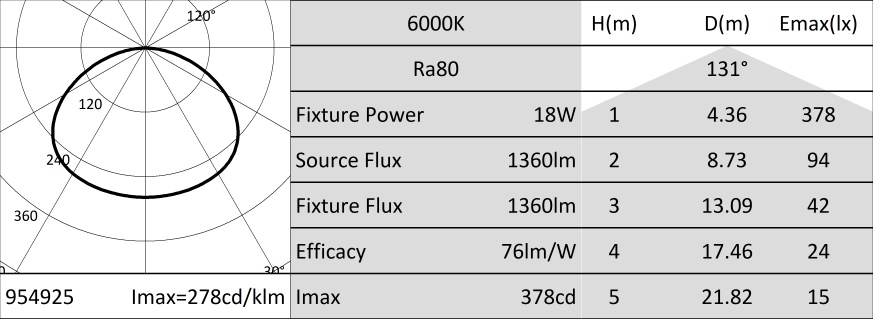

Photometry
Other Infotech
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905954925
Number of pieces multiple pack
20
Barcode multiple pack
8011905958961
Product sheet
Tender text
Extended
Compact
DS08L160T - LESELI SLIM DS - ROUND
Typology
LED source with SMD technology and high efficiency chip integrated into a recessed luminaire.
Features
Downlights with extremely limited width and remote driver.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to mains with free wires.
Material
High dissipation die-cast aluminum body with anti-yellowing PC screen.
White ring.
Notes
Luminaire is Non-Dimming.
Characteristic data
Power: 18 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
IP: 20
Optical compartment IP: 43
Flux: 1360 lm
PF: 0.5
Tc: 6000 K
Ra: >80
LED Warranty: G2
Axis: 378 cd
RG: RG0

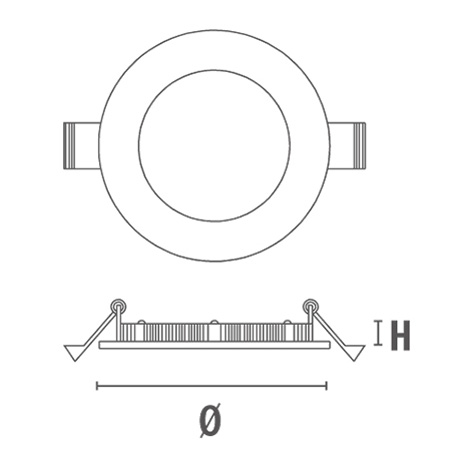

Dimensional characteristics
Dimensiones
ø: 225 mm
H: 8.5 mm
Paso de corte
Cutting hole: 203
Lighting and photometric features
Beam opening: 120°
Flux: 1360 lm
CCT nominal colour temperature: 6000 K
Colour of the light: Cool light
Colour rendering index: >80
Lifespan: 15000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 18 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0.5
Weighted energy consumption: 18 kWh/1000h
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 280 gr
Barcode single item: 8011905954925
Number of pieces multiple pack: 20
Barcode multiple pack: 8011905958961
Minimum order quantity: 1
Minimum packaging: 1 / 20
Other Infotech
Flicker Free: Yes
DS08L160T - LESELI SLIM DS - ROUND
Typology: LED source with SMD technology and high efficiency chip integrated into a recessed luminaire. Features: Downlights with extremely limited width and remote driver. Installation: Complete with springs for easy fastening into false ceilings. Connection to mains with free wires. Material: High dissipation die-cast aluminum body with anti-yellowing PC screen. White ring. Notes: Luminaire is Non-Dimming. Characteristic data - Power: 18 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; IP: 20; Optical compartment IP: 43; Flux: 1360 lm; PF: 0.5; Tc: 6000 K; Ra: >80; LED Warranty: G2; Axis: 378 cd; RG: RG0. Dimensional characteristics - Dimensiones; ø: 225 mm; H: 8.5 mm; Paso de corte; Cutting hole: 203. Lighting and photometric features - Beam opening: 120°; Flux: 1360 lm; CCT nominal colour temperature: 6000 K; Colour of the light: Cool light; Colour rendering index: >80; Lifespan: 15000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 18 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0.5; Weighted energy consumption: 18 kWh/1000h; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 280 gr; Barcode single item: 8011905954925; Number of pieces multiple pack: 20; Barcode multiple pack: 8011905958961; Minimum order quantity: 1; Minimum packaging: 1 / 20. Other Infotech - Flicker Free: Yes.
