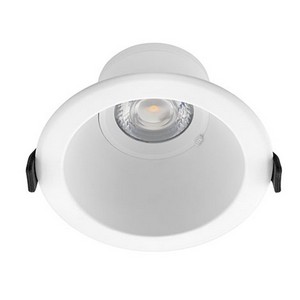

DH60L140
HELIOS UGR RECESSED FIXTURES
Typology
LED source with COB technology and an integrated high efficiency chip in a low glare UGR recessed light fixture.
Remote driver.
Features
The deep recess of the light source combined with the advanced lens technology ensures glare ratings from UGR<11 to UGR<19, applications include offices or places of work where computer screens are used and low glare is essential.
A sealed light source provides easy maintenance and cleaning.
Installation
Complete with springs for easy fastening into false ceilings.
Material
Aluminium body; extremely light and easy to manoeuvre.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>90
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
28 kWh/1000h
Operating temperature
-25°C / +45°C

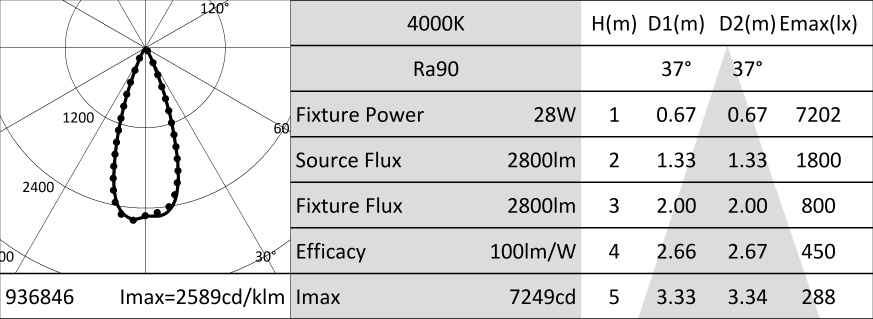

Photometry
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905936846
Number of pieces multiple pack
4
Product sheet
Tender text
Extended
Compact
DH60L140 - HELIOS UGR RECESSED FIXTURES
Typology
LED source with COB technology and an integrated high efficiency chip in a low glare UGR recessed light fixture.
Remote driver.
Features
The deep recess of the light source combined with the advanced lens technology ensures glare ratings from UGR<11 to UGR<19, applications include offices or places of work where computer screens are used and low glare is essential.
A sealed light source provides easy maintenance and cleaning.
Installation
Complete with springs for easy fastening into false ceilings.
Material
Aluminium body; extremely light and easy to manoeuvre.
Notes
Providing greater visual comfort, improved definition of detail and reduction of stress.
Characteristic data
Power: 28 W
Beam: 36°
Dimmable: No
Input: 220-240 Vac
Base: Wire
IP: 20
Optical compartment IP: 43
Flux: 2800 lm
PF: 0,95
UGR: <11
Tc: 4000 K
Ra: >90
LED Warranty: G5h24
Axis: 7250 cd
RG: RG1
Dimensional characteristics
Dimensiones
ø: 172 mm
H: 98 mm
Paso de corte
Cutting hole: 150
Lighting and photometric features
Beam opening: 36°
Flux: 2800 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >90
Lifespan: 50000 h
LED lifespan: L80B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
UGR: <11
Electrical characteristics
Rated power: 28 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,95
Weighted energy consumption: 28 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +45°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 220 gr
Barcode single item: 8011905936846
Number of pieces multiple pack: 4
Minimum order quantity: 1
Minimum packaging: 1 / 4
Other Infotech
Flicker Free: Yes
DH60L140 - HELIOS UGR RECESSED FIXTURES
Typology: LED source with COB technology and an integrated high efficiency chip in a low glare UGR recessed light fixture. Remote driver. Features: The deep recess of the light source combined with the advanced lens technology ensures glare ratings from UGR<11 to UGR<19, applications include offices or places of work where computer screens are used and low glare is essential. A sealed light source provides easy maintenance and cleaning. Installation: Complete with springs for easy fastening into false ceilings. Material: Aluminium body; extremely light and easy to manoeuvre. Notes: Providing greater visual comfort, improved definition of detail and reduction of stress. Characteristic data - Power: 28 W; Beam: 36°; Dimmable: No; Input: 220-240 Vac; Base: Wire; IP: 20; Optical compartment IP: 43; Flux: 2800 lm; PF: 0,95; UGR: <11; Tc: 4000 K; Ra: >90; LED Warranty: G5h24; Axis: 7250 cd; RG: RG1. Dimensional characteristics - Dimensiones; ø: 172 mm; H: 98 mm; Paso de corte; Cutting hole: 150. Lighting and photometric features - Beam opening: 36°; Flux: 2800 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >90; Lifespan: 50000 h; LED lifespan: L80B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; UGR: <11. Electrical characteristics - Rated power: 28 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,95; Weighted energy consumption: 28 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +45°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 220 gr; Barcode single item: 8011905936846; Number of pieces multiple pack: 4; Minimum order quantity: 1; Minimum packaging: 1 / 4. Other Infotech - Flicker Free: Yes.
