Typology

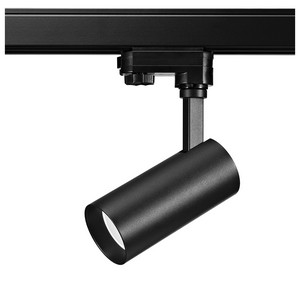

Professional LED projectors for track mounting with GU10 lampholder.
Features
Can be used with Eurostandard Plus tracks as well as with other brands: Staff, Nordlux, Nordic, Global, etc.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body.
Beam
Can be used with all GU10 lamps in the catalogue: select the desired power and beam opening.
Notes
Cable lenght 1,5 m.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905981082
Number of pieces multiple pack
20
Product sheet
Tender text
Extended
Compact
DBTR160-B - DURABLE TRACKLIGHT GU10
Typology
Professional LED projectors for track mounting with GU10 lampholder.
Features
Can be used with Eurostandard Plus tracks as well as with other brands: Staff, Nordlux, Nordic, Global, etc.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body.
Beam
Can be used with all GU10 lamps in the catalogue: select the desired power and beam opening.
Notes
Cable lenght 1,5 m.
Characteristic data
Input: 220-240 Vac
Base: GU10
IP: 20
LED Warranty: G3
Color: Black

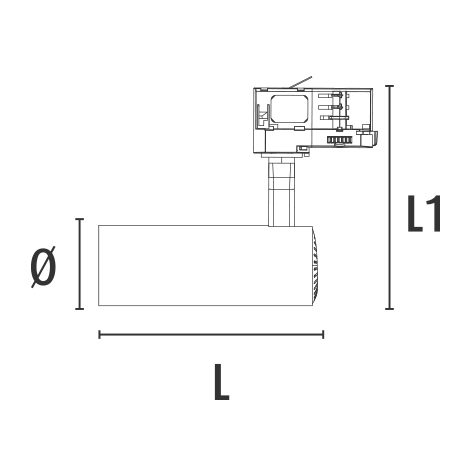

Dimensional characteristics
Dimensiones
L: 110 mm
ø: 60 mm
H: 170 mm
Electrical characteristics
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Operating temperature: -15°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 288 gr
Barcode single item: 8011905981082
Number of pieces multiple pack: 20
Minimum order quantity: 1
Minimum packaging: 1 / 20
DBTR160-B - DURABLE TRACKLIGHT GU10
Typology: Professional LED projectors for track mounting with GU10 lampholder. Features: Can be used with Eurostandard Plus tracks as well as with other brands: Staff, Nordlux, Nordic, Global, etc. Installation: Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks. Material: Die-cast painted aluminium body. Beam: Can be used with all GU10 lamps in the catalogue: select the desired power and beam opening. Notes: Cable lenght 1,5 m. Characteristic data - Input: 220-240 Vac; Base: GU10; IP: 20; LED Warranty: G3; Color: Black. Dimensional characteristics - Dimensiones; L: 110 mm; ø: 60 mm; H: 170 mm. Electrical characteristics - Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Operating temperature: -15°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 288 gr; Barcode single item: 8011905981082; Number of pieces multiple pack: 20; Minimum order quantity: 1; Minimum packaging: 1 / 20.
