Typology
LED source integrated into a recessed fixture equipped with a reflector.
Features
Reduced glare for better visual comfort.
Non-removable internal power supply.
Controlled light emission, ideal for general lighting of environments.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to the mains with terminal block.
Material
Heat conducting plastic body; extremely light and easy to handle.
White ring.
Notes
Luminaire is Non-Dimming.
Connection to mains is with a screw terminal.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
30 kWh/1000h
Operating temperature
-25°C / +35°C
Photometry
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905860899
Number of pieces multiple pack
6
Barcode multiple pack
8011905861452
Product sheet
Tender text
Extended
Compact
D83030A - LESELI REFLECTOR
Typology
LED source integrated into a recessed fixture equipped with a reflector.
Features
Reduced glare for better visual comfort.
Non-removable internal power supply.
Controlled light emission, ideal for general lighting of environments.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to the mains with terminal block.
Material
Heat conducting plastic body; extremely light and easy to handle.
White ring.
Notes
Luminaire is Non-Dimming.
Connection to mains is with a screw terminal.
Characteristic data
Power: 30 W
Beam: 70°
Dimmable: No
Input: 220-240 Vac
Base: Screws
IP: 20
Optical compartment IP: 43
Flux: 2400 lm
PF: 0,94
Tc: 3000 K
Ra: 80
LED Warranty: G3
Axis: 1850 cd
RG: RG1

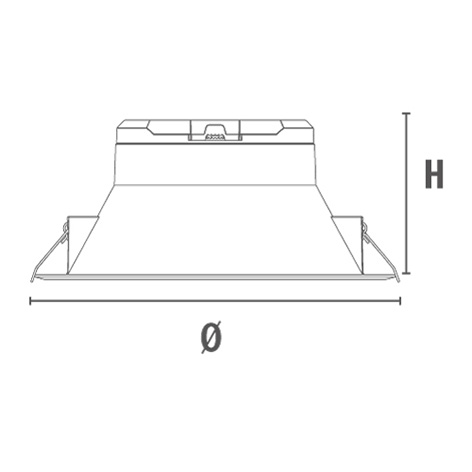

Dimensional characteristics
Dimensiones
ø: 230 mm
H: 102 mm
Paso de corte
Cutting hole: 215
Lighting and photometric features
Beam opening: 70°
Flux: 2400 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: 80
Lifespan: 25000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 30 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,94
Weighted energy consumption: 30 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 450 gr
Barcode single item: 8011905860899
Number of pieces multiple pack: 6
Barcode multiple pack: 8011905861452
Minimum order quantity: 6
D83030A - LESELI REFLECTOR
Typology: LED source integrated into a recessed fixture equipped with a reflector. Features: Reduced glare for better visual comfort. Non-removable internal power supply. Controlled light emission, ideal for general lighting of environments. Installation: Complete with springs for easy fastening into false ceilings. Connection to the mains with terminal block. Material: Heat conducting plastic body; extremely light and easy to handle. White ring. Notes: Luminaire is Non-Dimming. Connection to mains is with a screw terminal. Characteristic data - Power: 30 W; Beam: 70°; Dimmable: No; Input: 220-240 Vac; Base: Screws; IP: 20; Optical compartment IP: 43; Flux: 2400 lm; PF: 0,94; Tc: 3000 K; Ra: 80; LED Warranty: G3; Axis: 1850 cd; RG: RG1. Dimensional characteristics - Dimensiones; ø: 230 mm; H: 102 mm; Paso de corte; Cutting hole: 215. Lighting and photometric features - Beam opening: 70°; Flux: 2400 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: 80; Lifespan: 25000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 30 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,94; Weighted energy consumption: 30 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 450 gr; Barcode single item: 8011905860899; Number of pieces multiple pack: 6; Barcode multiple pack: 8011905861452; Minimum order quantity: 6.
