D3030HPQ-D
LESELI HIGH POWER - SQUARE
Typology
LED source with SMD technology and high efficiency chip integrated into a recessed luminaire.
Features
Soft satin effect polycarbonate anti-glare diffuser.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to the mains with terminal block.
Material
Thermally conductive body; extremely light and manageable.
White ring.
Notes
Do not use with dimmers except if otherwise indicated.
Characteristic data
Dimmable
TRIAC/LEADING EDGE
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Dimmable
TRIAC/LEADING EDGE
Weighted energy consumption
30 kWh/1000h
Operating temperature
-25°C / +35°C

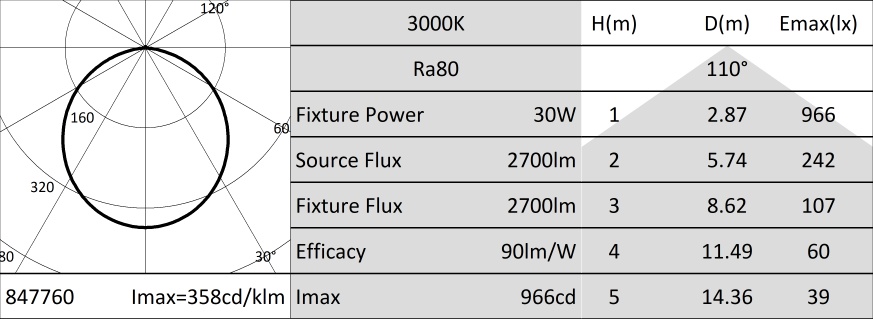

Photometry
Other Infotech
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905847760
Number of pieces multiple pack
6
Barcode multiple pack
8011905847777
Product sheet
Tender text
Extended
Compact
D3030HPQ-D - LESELI HIGH POWER - SQUARE
Typology
LED source with SMD technology and high efficiency chip integrated into a recessed luminaire.
Features
Soft satin effect polycarbonate anti-glare diffuser.
Installation
Complete with springs for easy fastening into false ceilings.
Connection to the mains with terminal block.
Material
Thermally conductive body; extremely light and manageable.
White ring.
Notes
Do not use with dimmers except if otherwise indicated.
Characteristic data
Power: 30 W
Beam: 90°
Dimmable: TRIAC/LEADING EDGE
Input: 220-240 Vac
Base: Free Wire
IP: 20
Optical compartment IP: 43
Flux: 2700 lm
PF: 0,95
Tc: 3000 K
Ra: >80
LED Warranty: G3
Axis: 930 cd
RG: RG1
Dimensional characteristics
Dimensiones
L: 230 mm
L1: 230 mm
H: 60 mm
Paso de corte
Cutting hole: 200x200
Lighting and photometric features
Beam opening: 90°
Flux: 2700 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: >80
Lifespan: 25000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 30 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: TRIAC/LEADING EDGE
Power factor (PF): 0,95
Input current: 0.13 A
Weighted energy consumption: 30 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-2:2012
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 672 gr
Barcode single item: 8011905847760
Number of pieces multiple pack: 6
Barcode multiple pack: 8011905847777
Minimum order quantity: 6
Other Infotech
Reflector: Yes
D3030HPQ-D - LESELI HIGH POWER - SQUARE
Typology: LED source with SMD technology and high efficiency chip integrated into a recessed luminaire. Features: Soft satin effect polycarbonate anti-glare diffuser. Installation: Complete with springs for easy fastening into false ceilings. Connection to the mains with terminal block. Material: Thermally conductive body; extremely light and manageable. White ring. Notes: Do not use with dimmers except if otherwise indicated. Characteristic data - Power: 30 W; Beam: 90°; Dimmable: TRIAC/LEADING EDGE; Input: 220-240 Vac; Base: Free Wire; IP: 20; Optical compartment IP: 43; Flux: 2700 lm; PF: 0,95; Tc: 3000 K; Ra: >80; LED Warranty: G3; Axis: 930 cd; RG: RG1. Dimensional characteristics - Dimensiones; L: 230 mm; L1: 230 mm; H: 60 mm; Paso de corte; Cutting hole: 200x200. Lighting and photometric features - Beam opening: 90°; Flux: 2700 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: >80; Lifespan: 25000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 30 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: TRIAC/LEADING EDGE; Power factor (PF): 0,95; Input current: 0.13 A; Weighted energy consumption: 30 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-2:2012; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 672 gr; Barcode single item: 8011905847760; Number of pieces multiple pack: 6; Barcode multiple pack: 8011905847777; Minimum order quantity: 6. Other Infotech - Reflector: Yes.
